Luxury Fire-Resistant Homes
Class A Materials Precision Modular Systems High-End Design
Not Just a Home A Complete Fire-Resistant System
Complete One-Stop Building Material & Modular System
ABOUT BM DEPOT
A Global One-Stop Building System Company
Integrating Materials, Engineering, and Modular Construction for Faster, Safer, and More Cost-Efficient Projects
🌍
Global Supply Network
- Global sourcing across Korea, China, USA and India
- One-stop project-based material supply
- Certified & quality-controlled vendors
⚙️
Engineering & Fabrication
- Structural steel shop drawings & fabrication
- LGS framing systems
- Prefabricated modular components
⏱️
Project Efficiency
- On-time delivery aligned with schedule
- Reduced cost through prefabrication
- Shortened construction period
CONTENTS
One-Stop Shopping Categories
01Light Gauge Steel Frames FabricationKorea, China · LA Fabricator
02Structural Steel FabricationKorea · LA Fabricator
03Wall Cladding SystemKorea · ICC-ES, ESR
04Modular Bathroom SystemKorea, China · UPC
05Kitchen CabinetKorea, China · KCMA
06Flooring SystemChina, India · Test Report
07WindowsKorea · NFRC
08ADU Modular HouseKorea, China · LA Fabricator
09Precast Concrete FoundationUSA, Korea · LA Fabricator
10Certificates & ReportsUSA

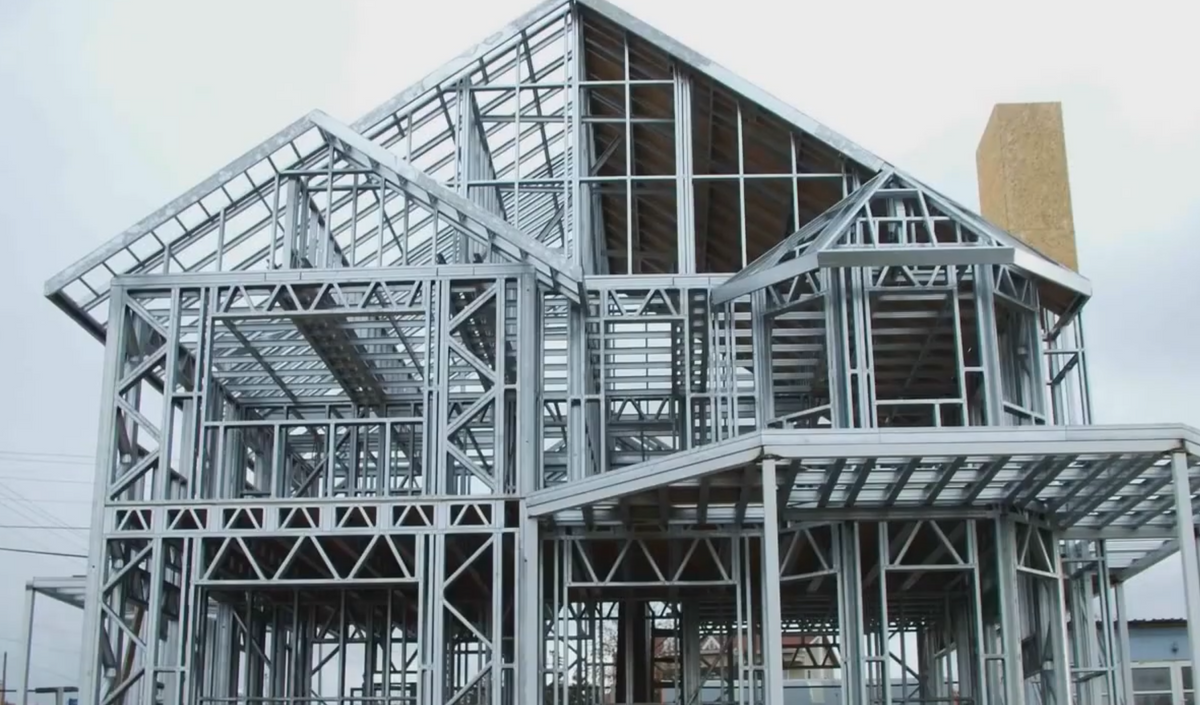

LIGHT GAUGE STEEL FRAMES
Light Gauge Steel Frames Fabrication

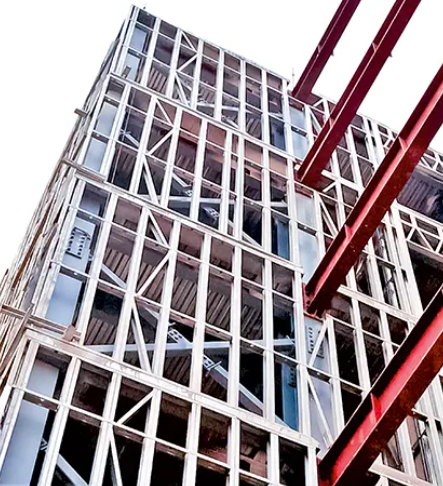

Light Gauge Steel Frames
Builders Modular Depot is a full-service light gauge steel frame fabricator for residential and commercial structures.
Our services consist of structural shop drawing for fabrication, fabrication of steel trusses, floor joists, and stud wall frames to suit all kinds of needs and requirements by the client and complies with local building codes.
We do have a deputy inspection system to deliver with OSB sheathing wall frames to site.
Also, we can install an insulation to frame core such as rock wool, glass fiber or polyurethane insulation by thermal conductivity and local building code.
Process

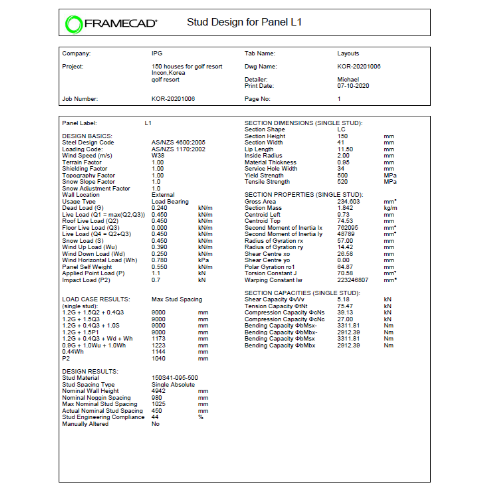

Structural Calculation

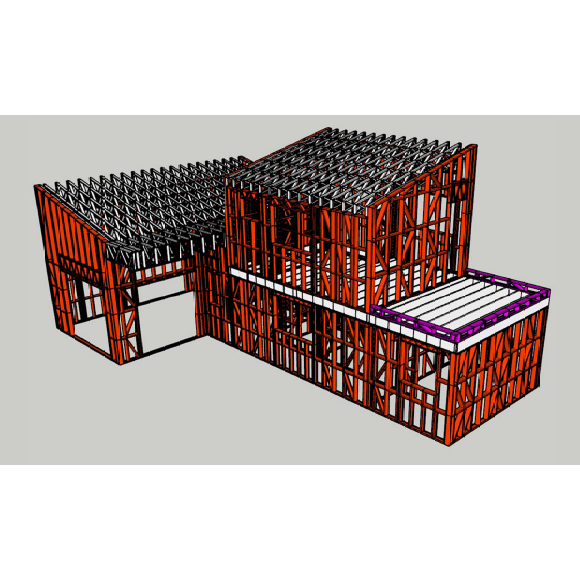

3D Remodeling

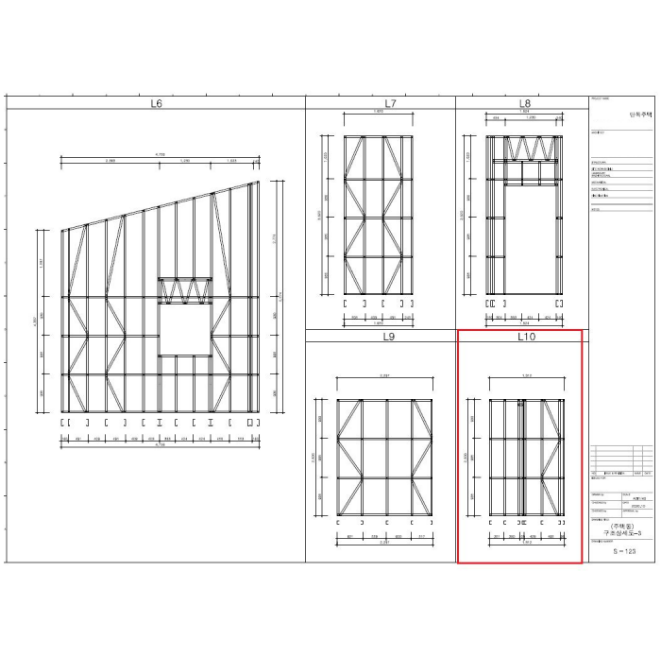

Shop Drawing Approval

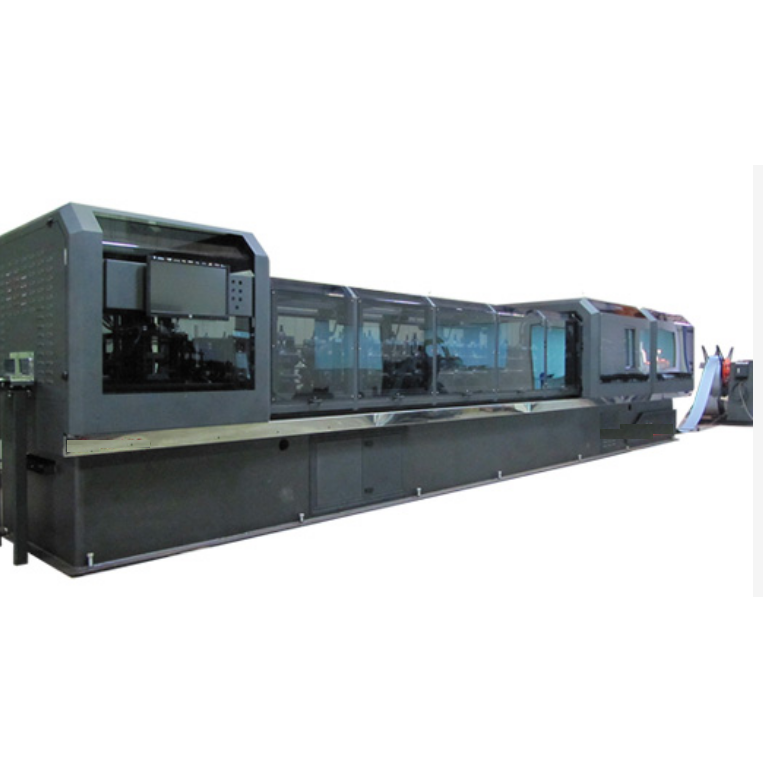

Fabrication
On Site Delivery
Factory Fabrication to Site Delivery

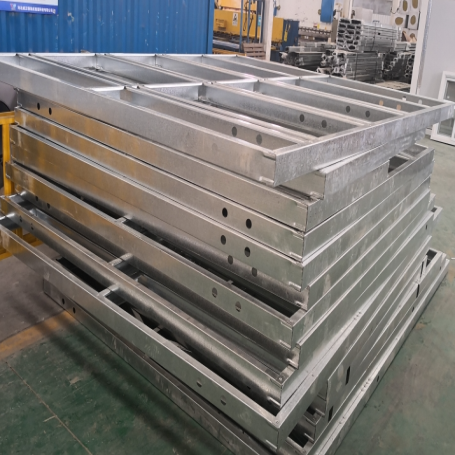

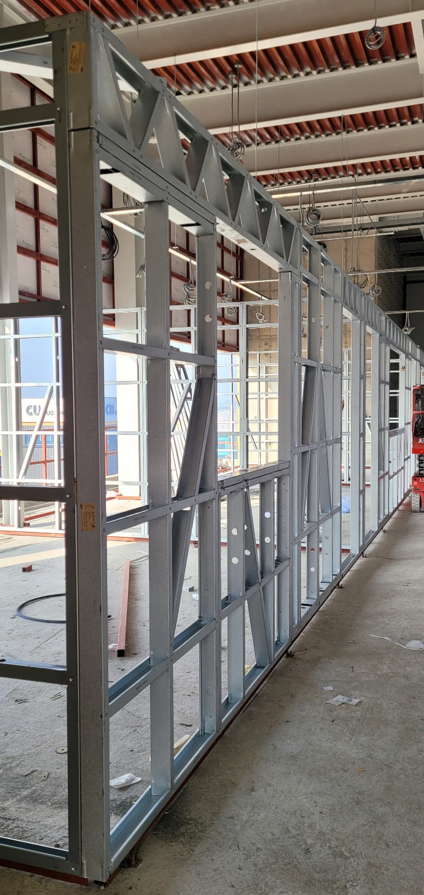

Wall Frame Fabrication

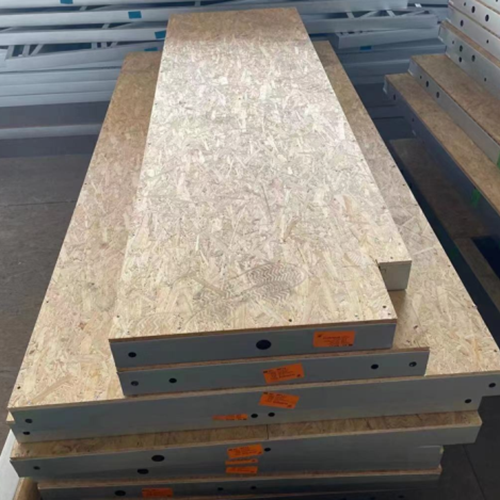

OSB Sheathing

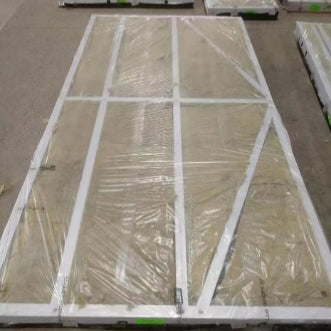

Insulation Installation

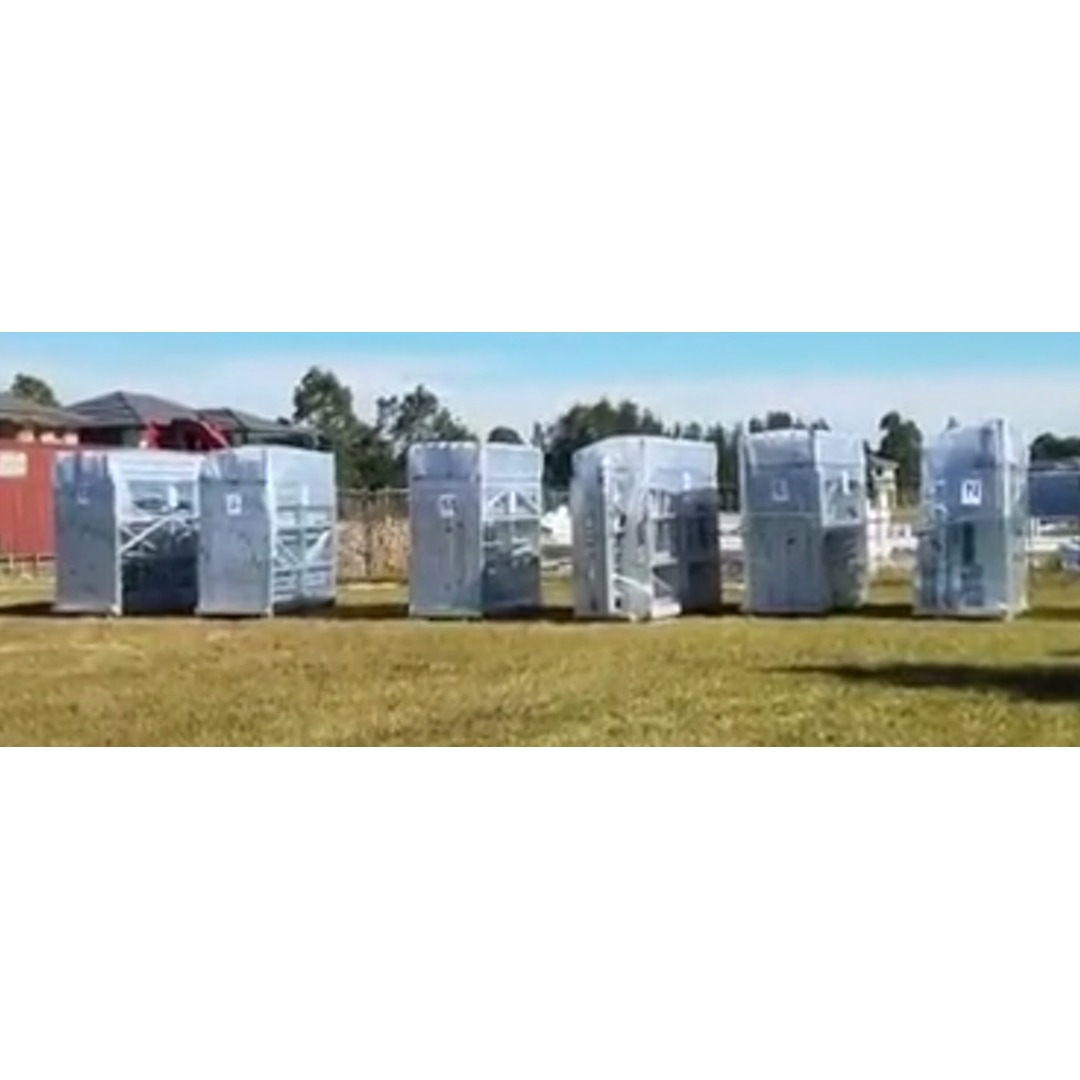

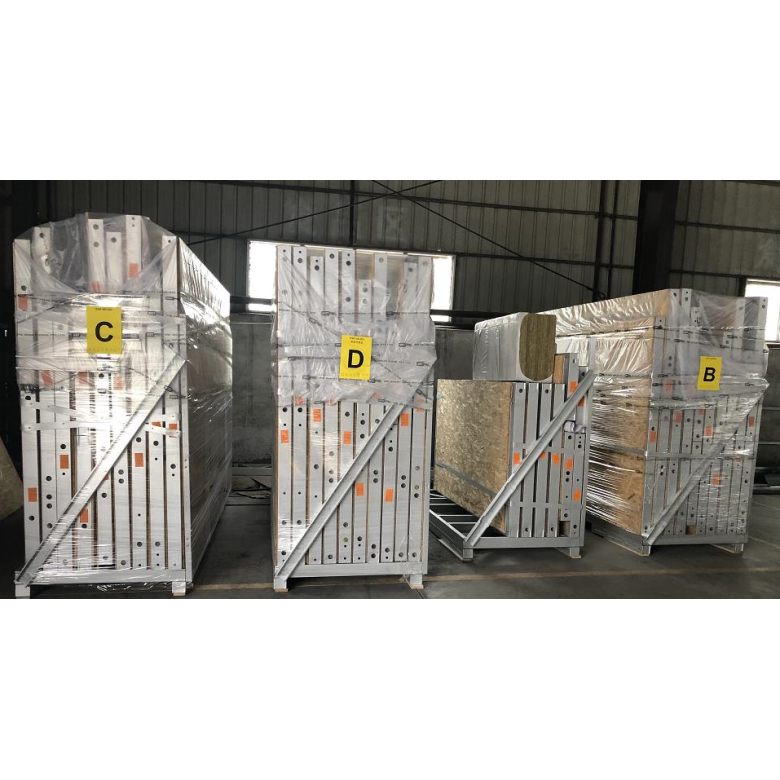

Packing

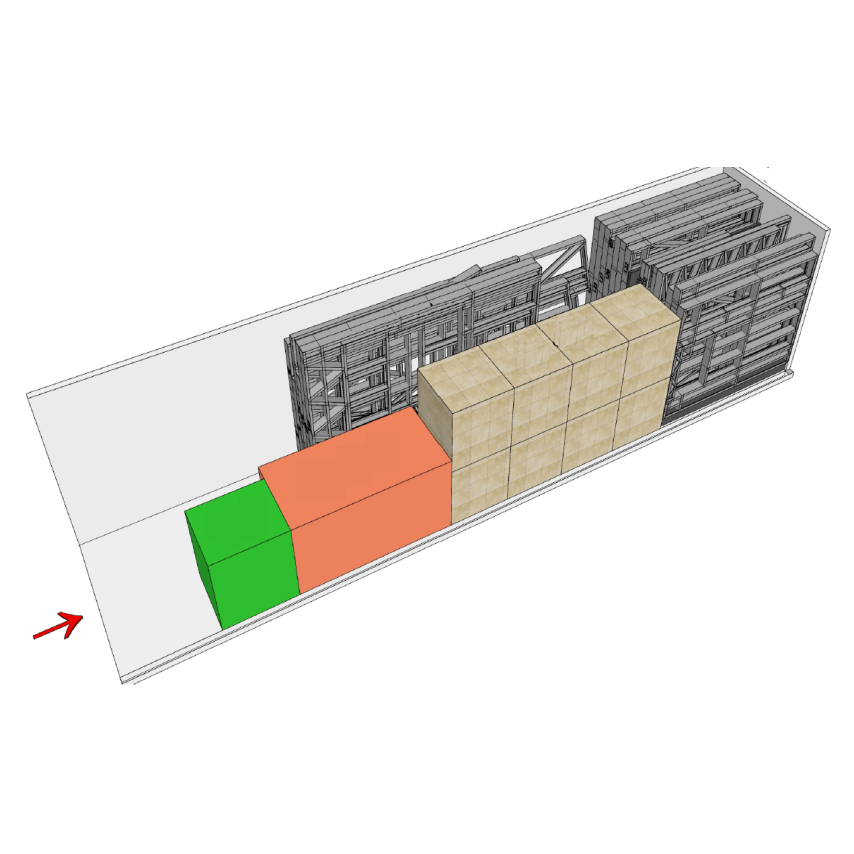

Consolidated Loading

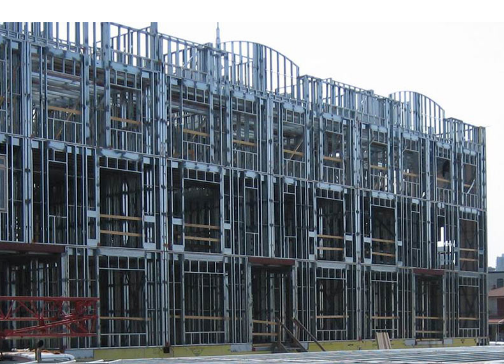

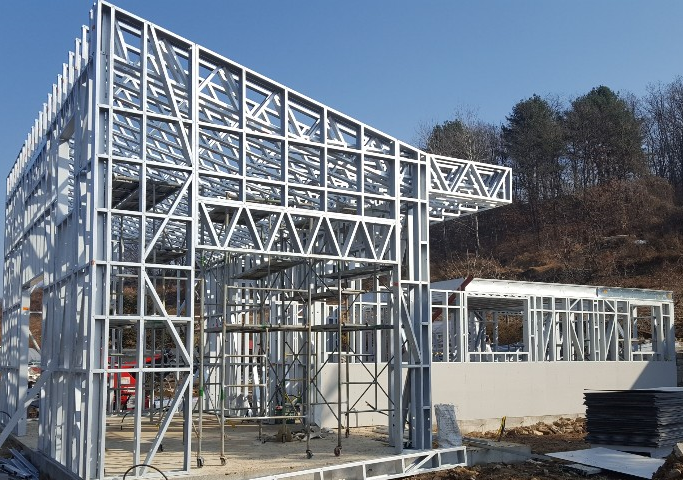

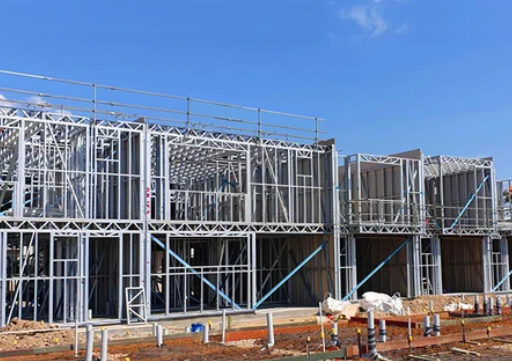

Metal Stud Frame Installation

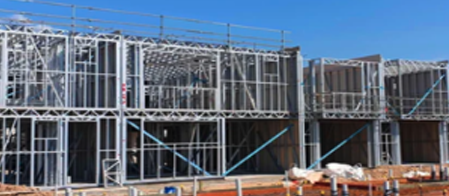

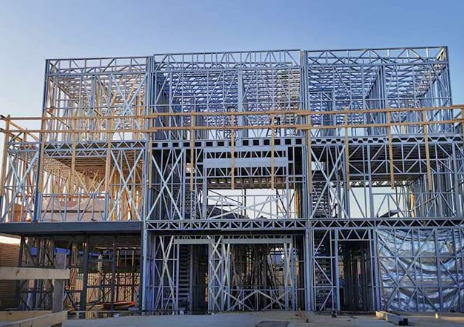

First-Floor Metal Frame Installation

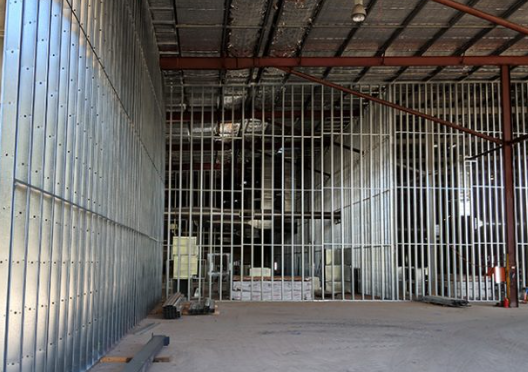

Commercial Metal Frames (Exterior & Interior)
Metal Frames for Exterior

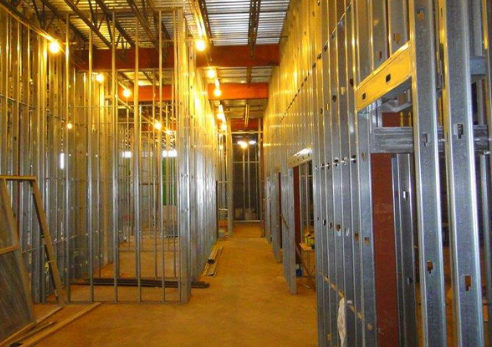

Metal Frames for Interior

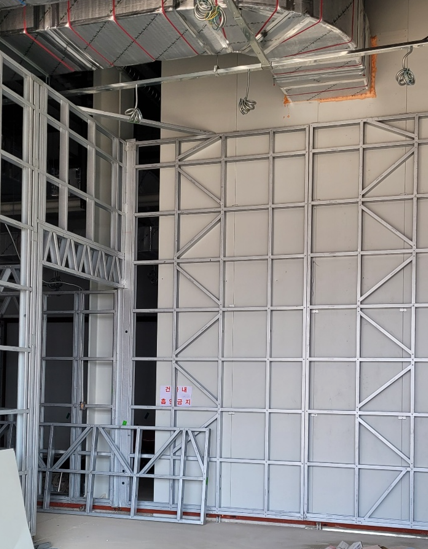

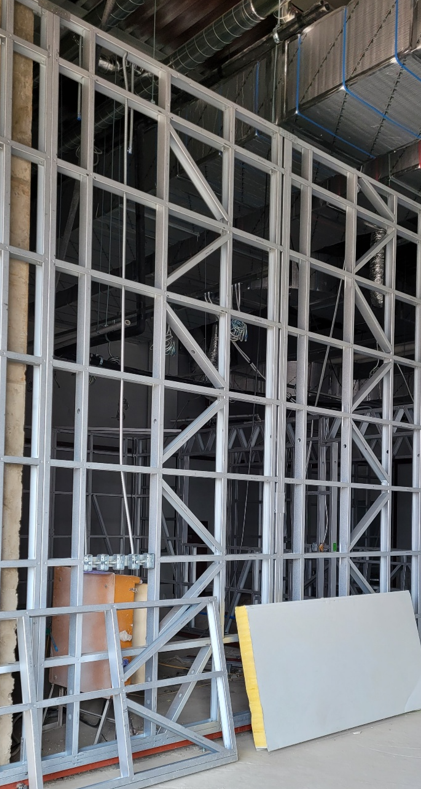

Commercial Wall Panel Frames (15’ Walls)
Fabricated Metal Frames 15’0” Height
Fabricated Metal Frames 15'0" Height
STRUCTURAL STEEL FABRICATION & PAINTING
Steel Fabrication Service
End-to-end structural steel fabrication supported by experienced engineering, precision manufacturing, and certified production capabilities.
2003
Established in Korea
60,000
Tons per year capacity
130,000m²
Total facility area
FB25056
City of Los Angeles Fabricator Certificate
Complete Fabrication Capability
Samnam Engineering is one of the leading steel fabrication companies in Korea and has provided structural steel fabrication services since 2003.
Our team provides end-to-end steel fabrication services including cleaning, cutting, shearing, cropping, straightening, bending, rolling, welding, fastening, finishing, and surface treatment for structural steelwork.
The Samnam facility covers more than 130,000m², including a 16,500m² steel raw-material sales area, with structural steel fabrication capacity of up to 60,000 tons per year.
We aim to provide cost-efficient, high-quality steel fabrication services to clients worldwide.
FABRICATION SERVICES
Our Steel Fabrication Services
01
Heavy Structure Fabrication
02
Light Structure Fabrication
03
Heavy Built-Up Fabrication
04
Pre-Engineered Building Structure Fabrication
05
Light Gauge Steel Fabrication
06
Cladding & Decking Fabrication
07
Fireproof Painting to Fabricated Steel Members

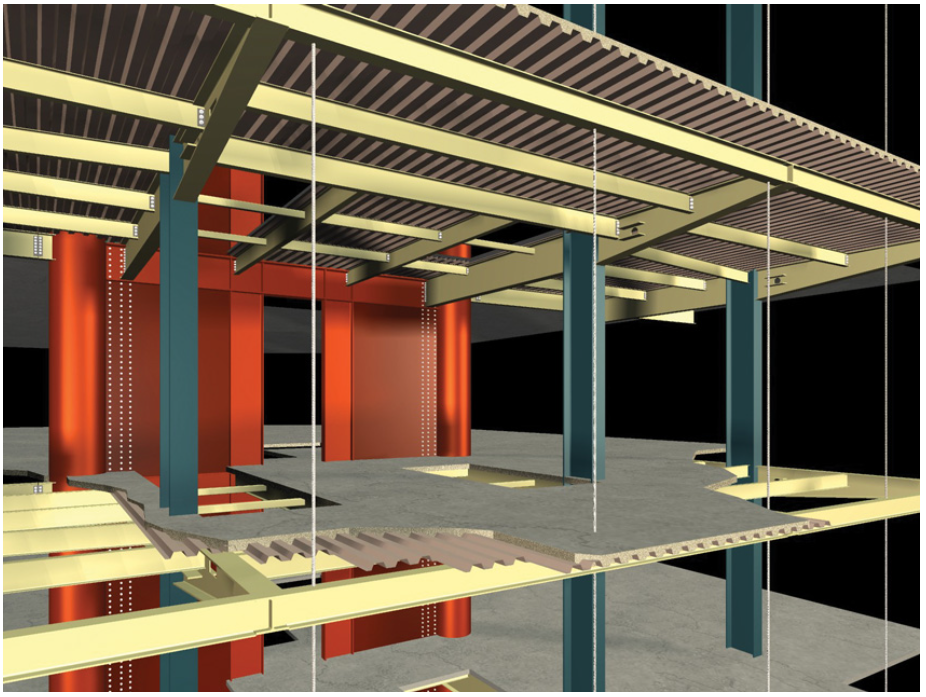

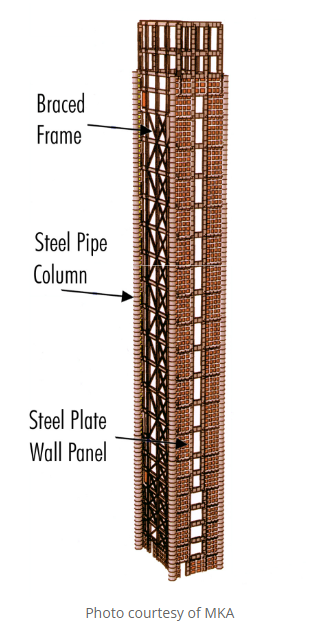

Structural Steel Fabrication 3D for U.S. Courthouse, Seattle, WA
Structural Steel Fabrication & Painting
Structural Steel Fabrication 3D for US Courthouse, Seattle, WA
Structural Steel Fabrication Experience
BMD staff have experience delivering structural steel fabrication for the U.S. Courthouse federal project in Seattle, Washington.
Structural Steel Fabrication & Fire-Resistant Painting

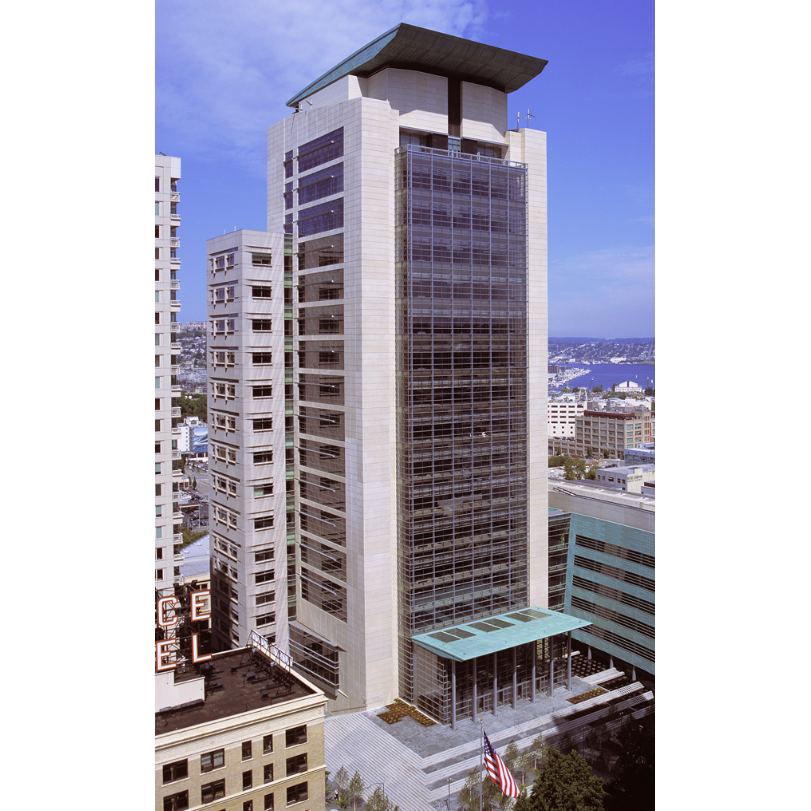

US Courthouse Structural Steel Fabrication
Fire-Resistance Painting

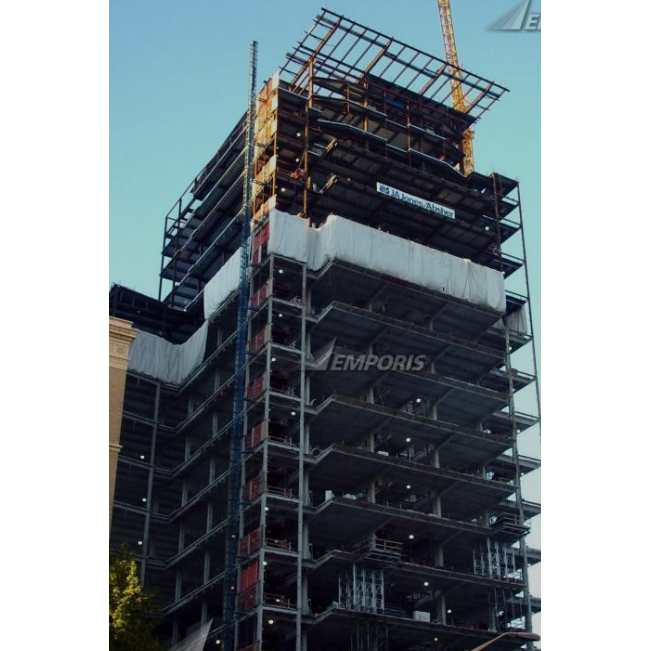

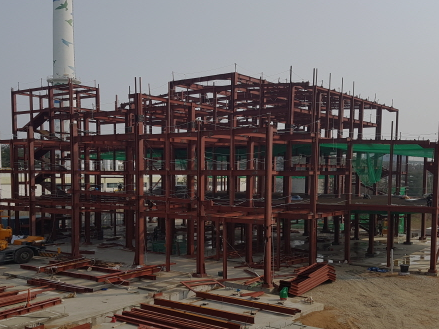

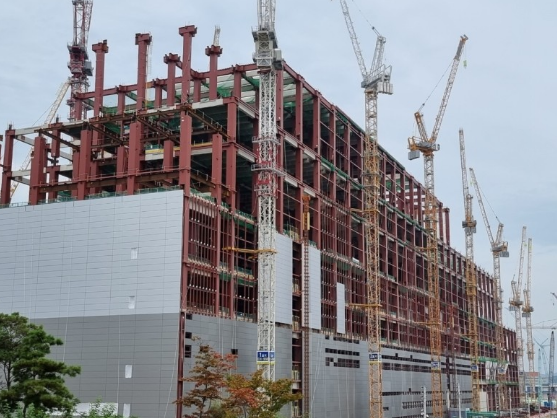

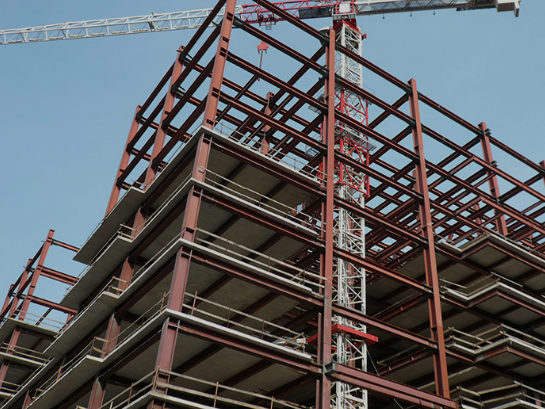

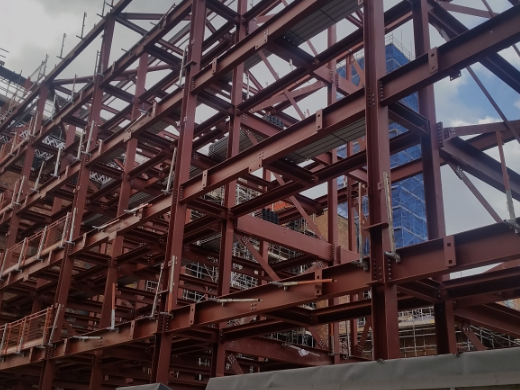

Structural Steel Erection (Industrial & Commercial project)

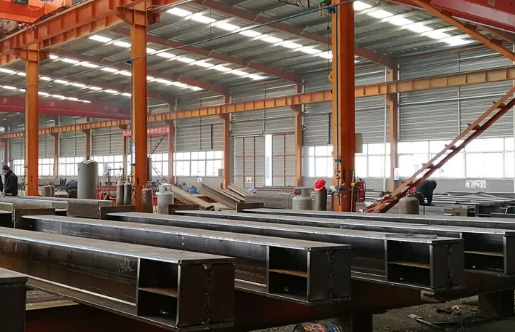

Structural Steel Fabrication (Samnam Engineering Co., Ltd, Korea)

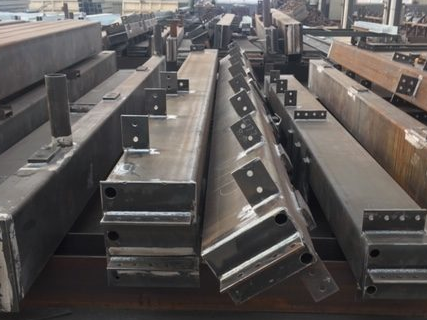

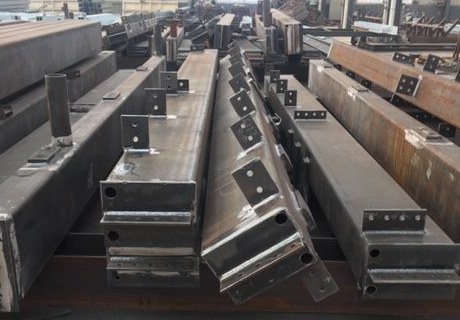

Structural Steel Column

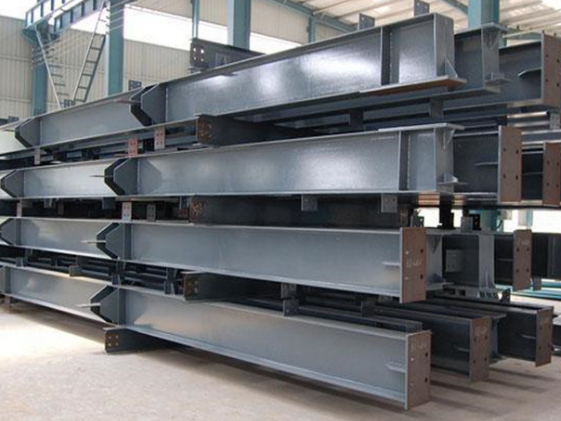

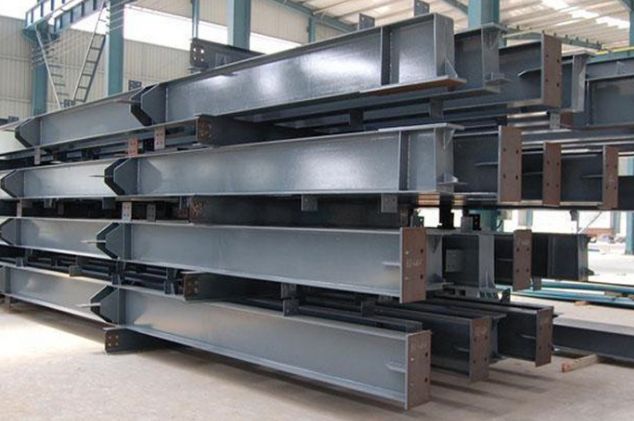

Structural Steel Members

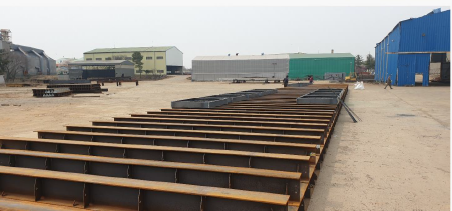

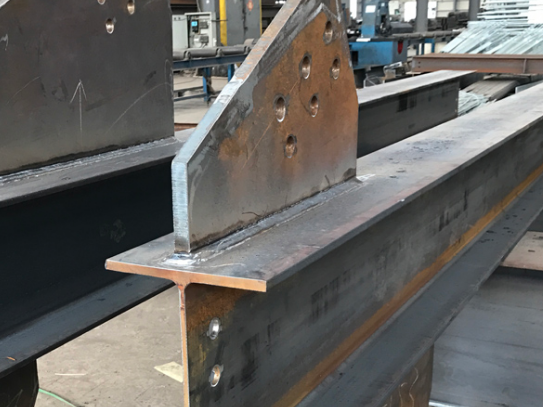

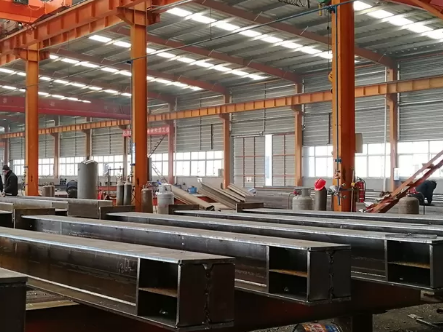

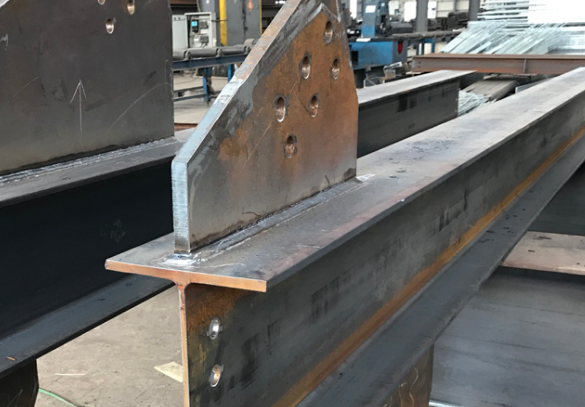

Structural Beam Fabrication
Structural Steel Column Fabrication

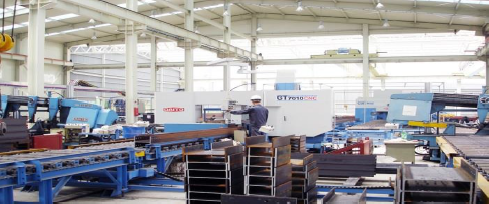

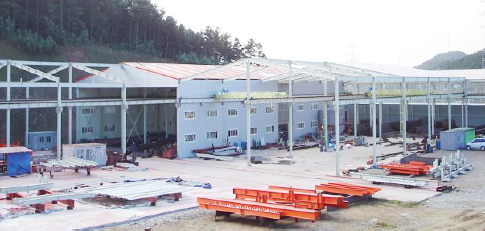

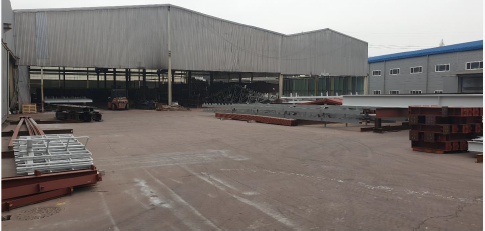

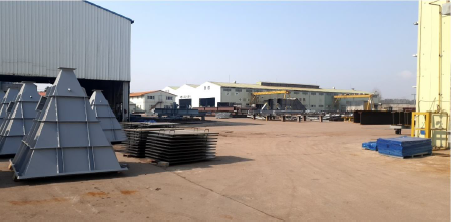

Samnam Engineering 1st Factory, 216,400 sf, (Korea)

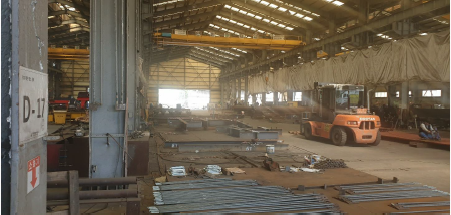

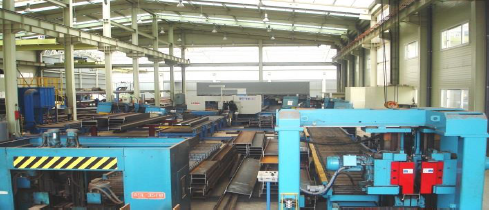

Samnam Engineering 2nd Factory, 568,020 sf, (Korea)
STRUCTURAL STEEL
Structural Steel Fabrication
Samnam Engineering Co., Ltd. · Korea
STRUCTURAL STEEL
Fabricated Steel Components
Columns, beams and structural members
Structural Steel Column
Structural Steel Members
Structural Beam Fabrication
Structural Steel Column Fabrication

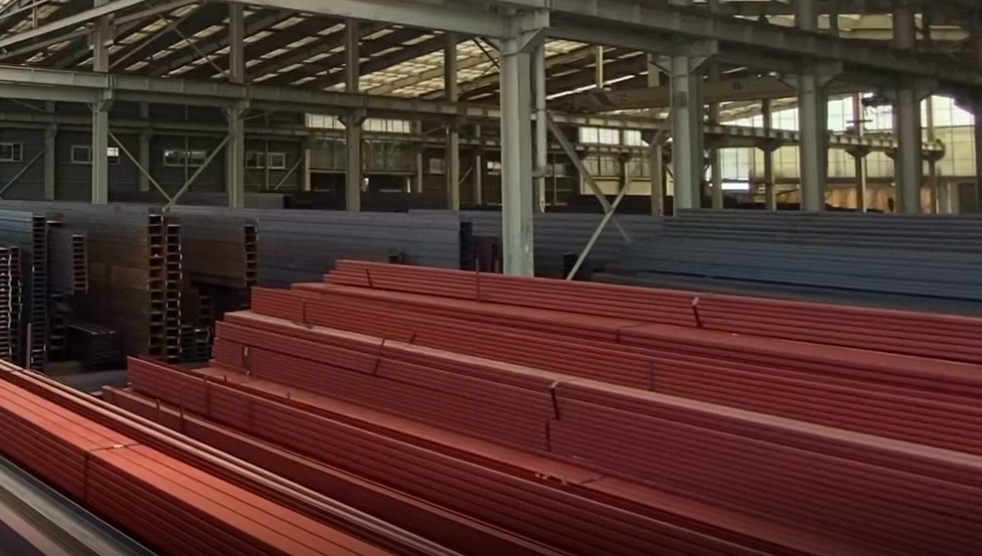

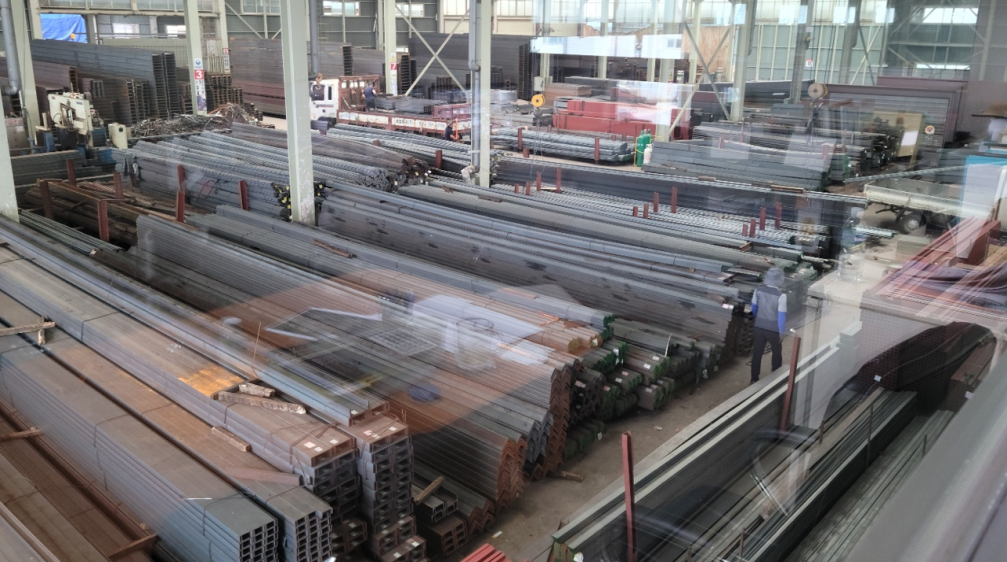

STEEL MATERIALS
Steel Raw Material Wholesale
Samnam Steel Co., Ltd. · 250,000 sf · Korea

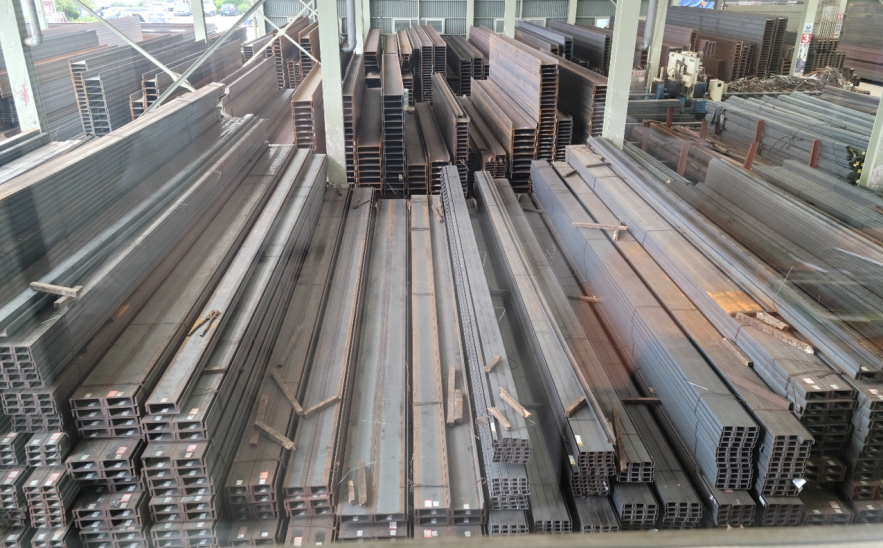

Pipe & Channels
Pipes

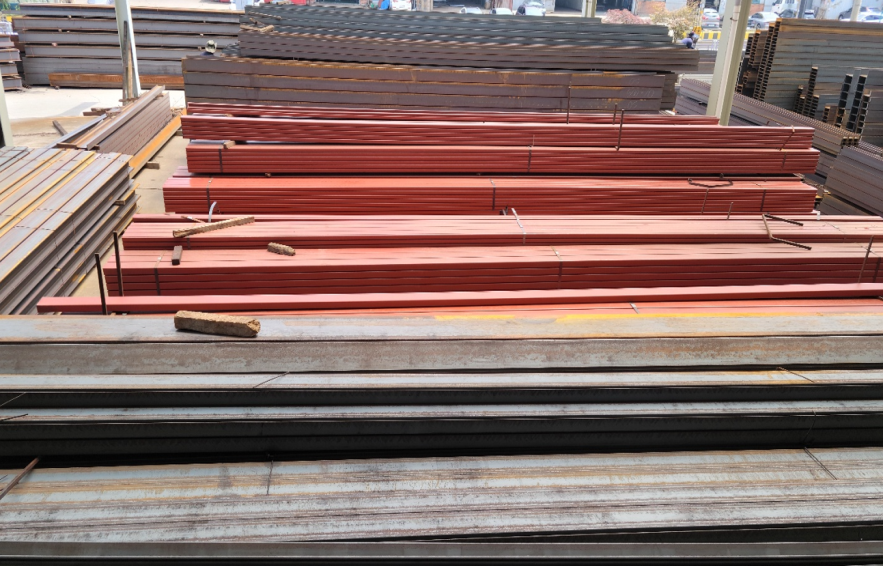

Beams
Plates & Pipes
WALL CLADDING SYSTEM
SUPERTILE
Exterior Wall Finish · Porcelain Tile Surface · ICC-ES ESR5702 · Class A
SUPERTILE SYSTEM01 02 03 04 05
What is Supertile?
A decorative and protective wall system designed for exterior and interior building applications.
Aesthetics
Wide selection of colors, textures and patterns.
Insulation
Supports improved thermal performance.
Durability
Weather resistance and reduced maintenance.
Materials
Porcelain tile, flexible stone and composite finishes.
Installation
Modern bracket and screw installation methods.

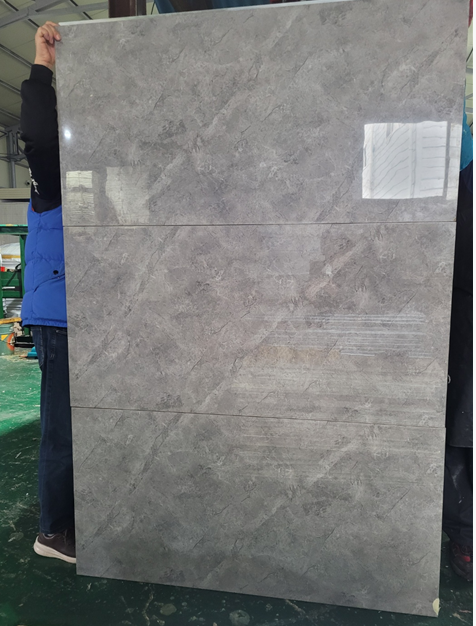

PRODUCT SPECIFICATION
Supertile Specification
600 × 1200 × 30 mm · Type V construction · Class A interior finish

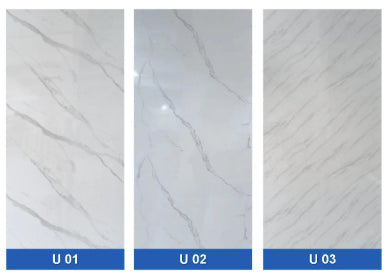

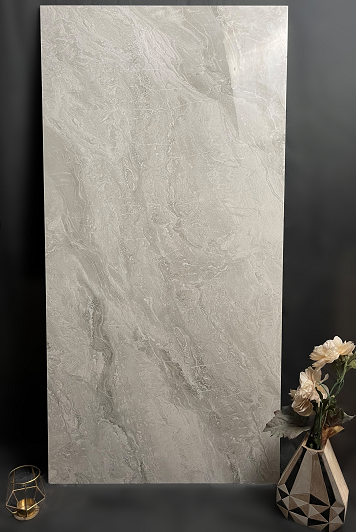

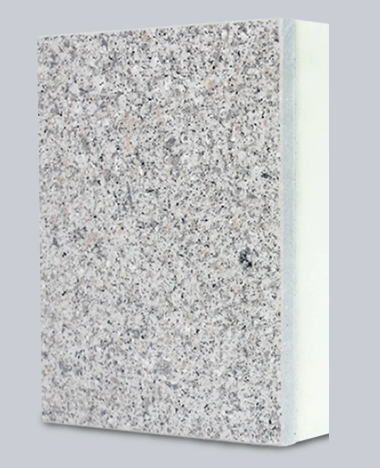

Stone
Matt Tile

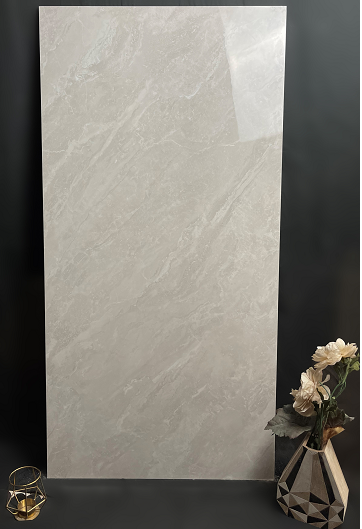

Polished Tile
SUPERTILE PROJECT

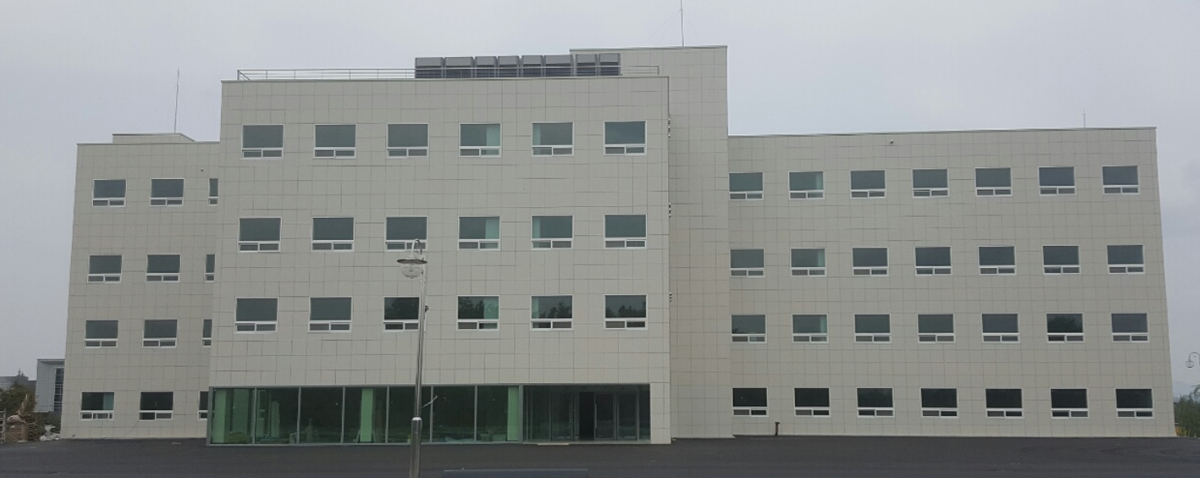

Supertile Mock Up

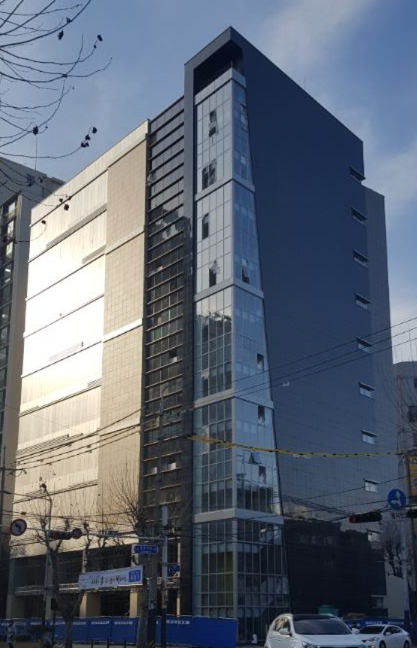

Bumin Hospital · Haeundae
Bumin Hospital, Haeundae
Supertile Mock Up
COMMERCIAL APPLICATION

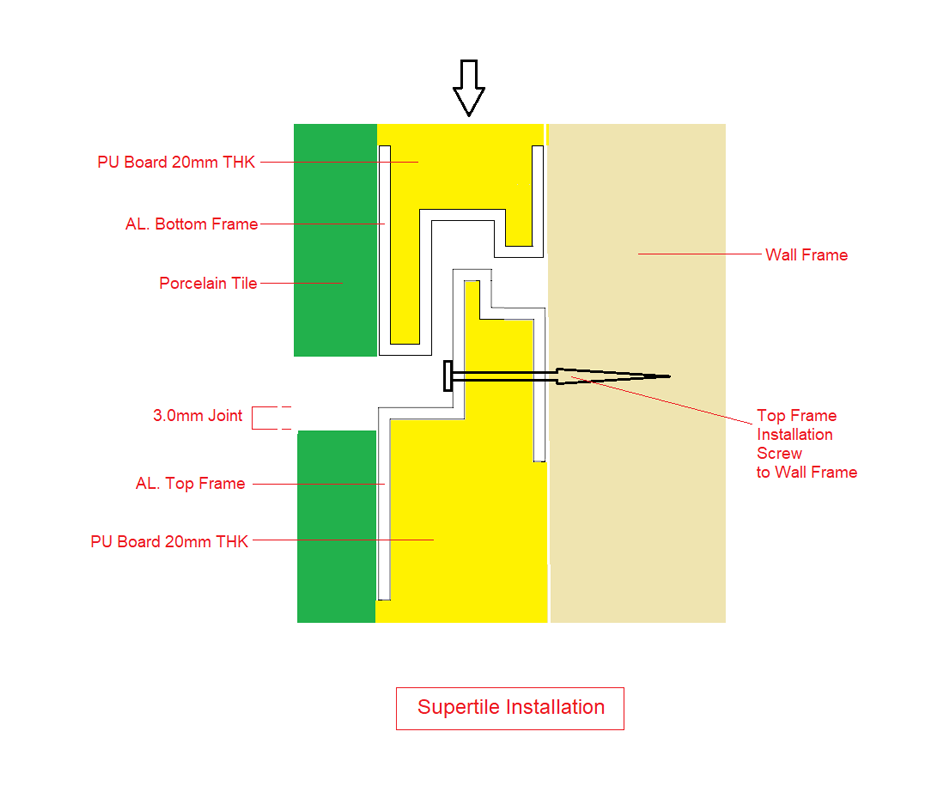

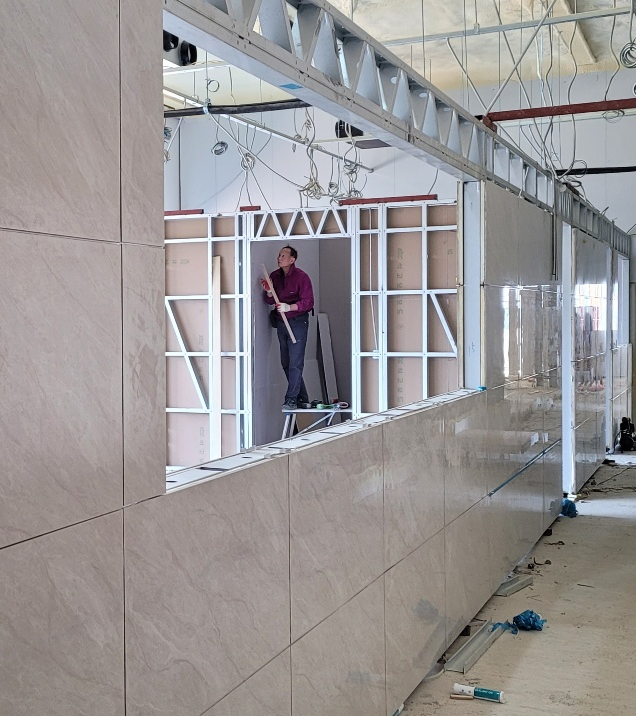

Supertile Installation
Installation on metal stud framing

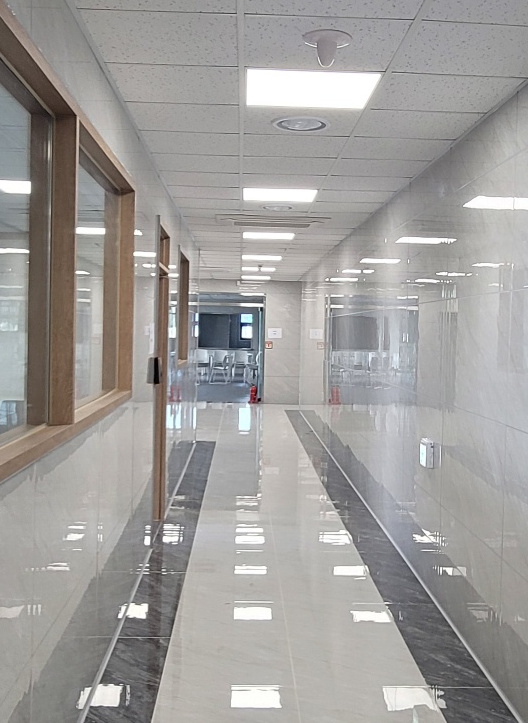

Metal Frames for Interior Wall
Supertile Installation on Metal Stud Frames
EXTERIOR & INTERIOR
Supertile Cladding
Commercial wall applications

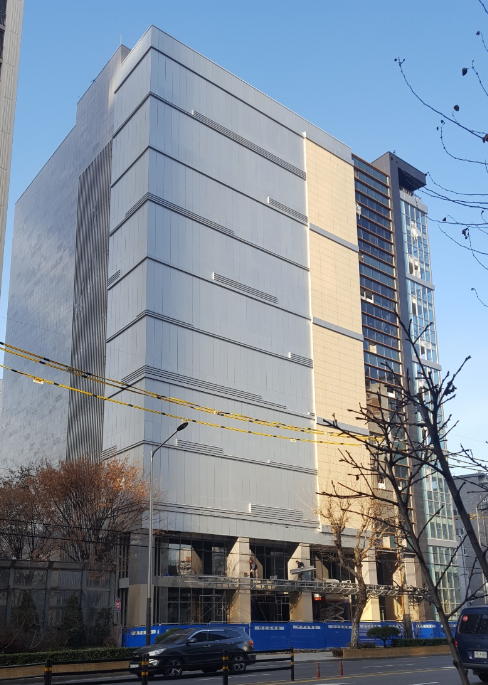

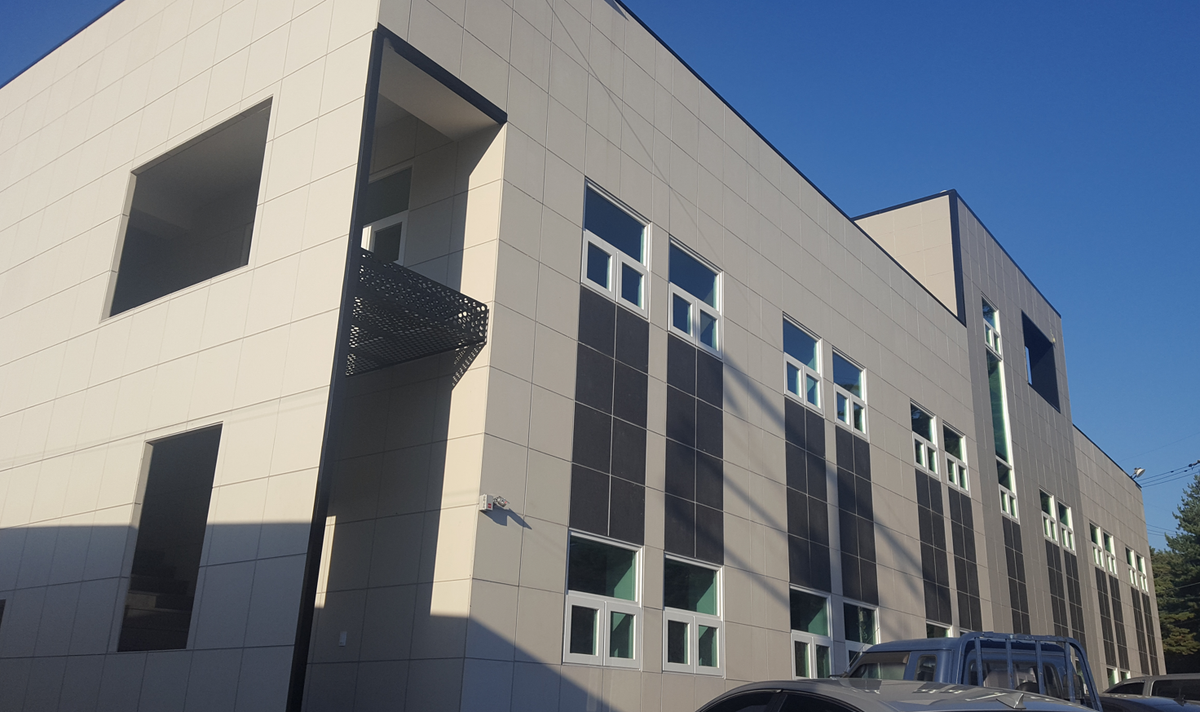

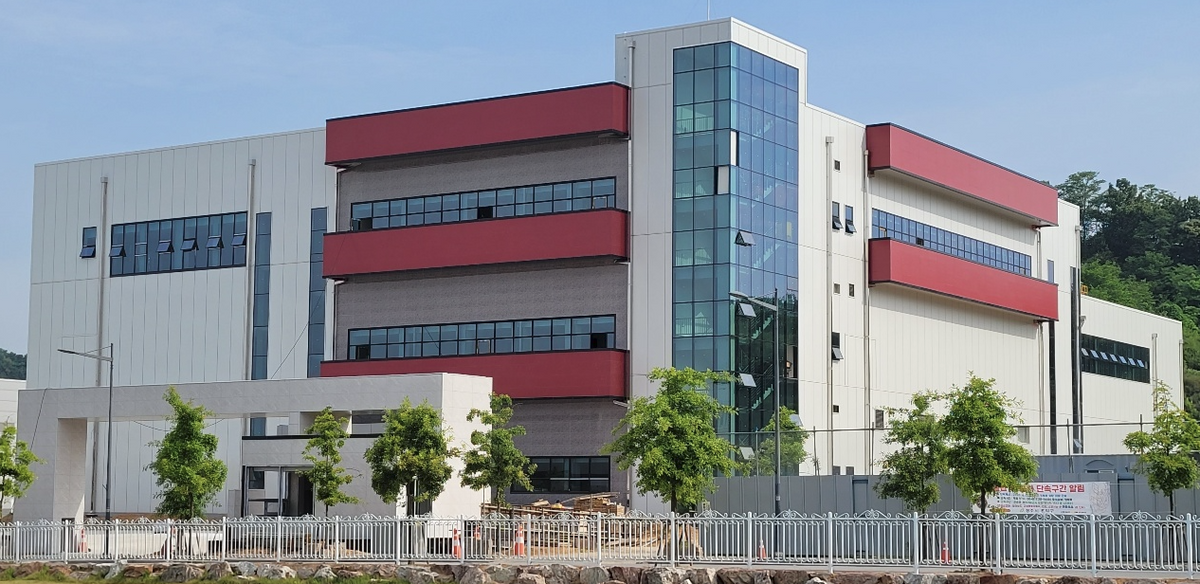

HEALTHCARE PROJECT

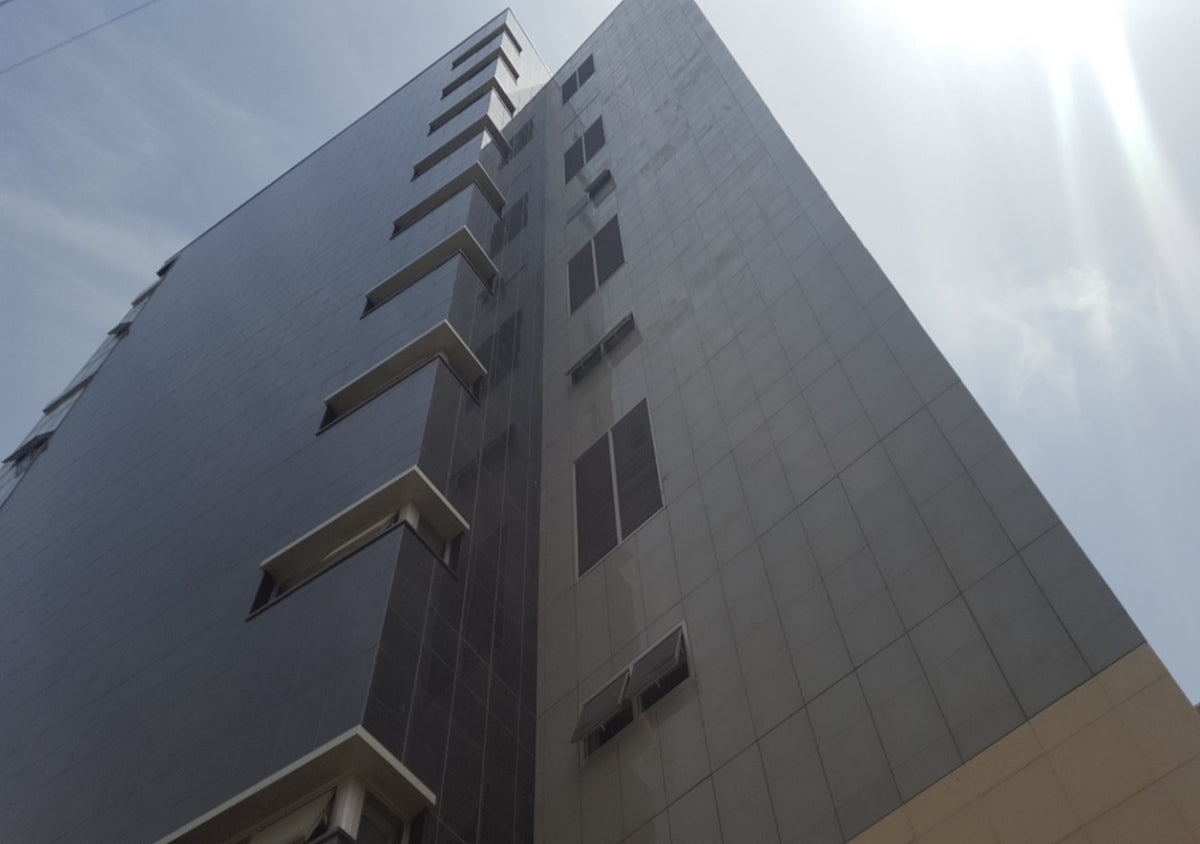

Youngwoong Hospital
Supertile exterior and interior wall cladding

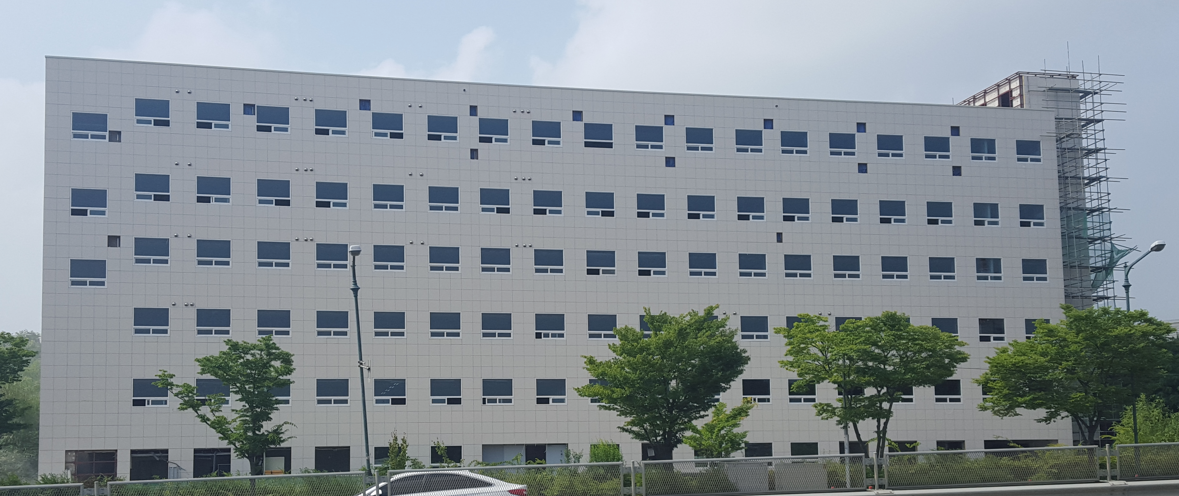

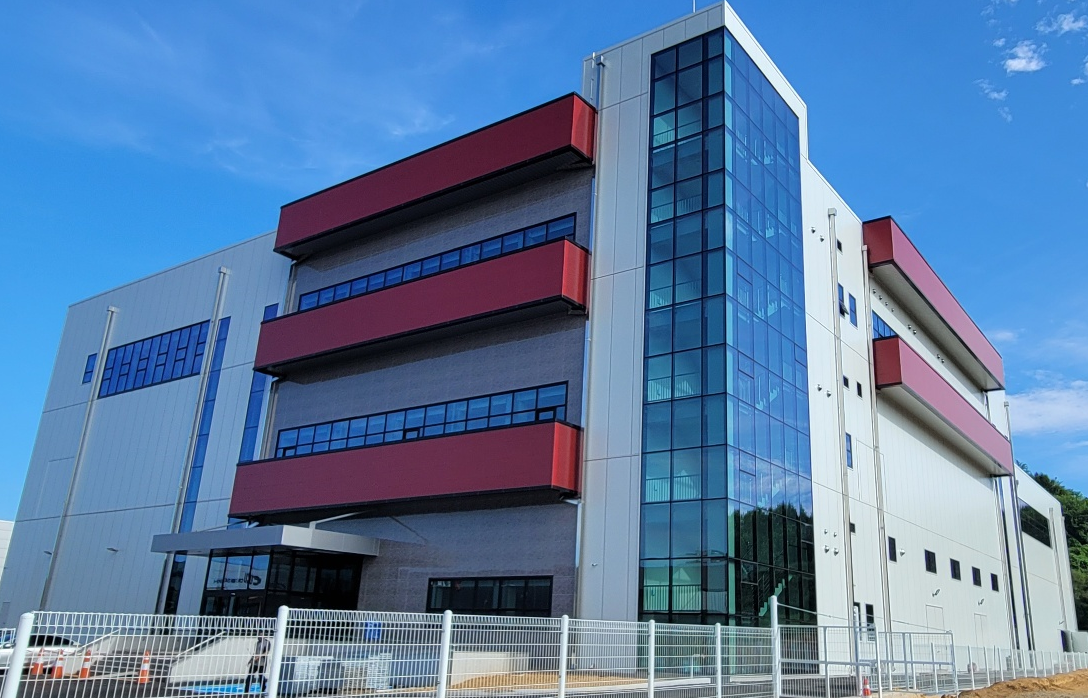

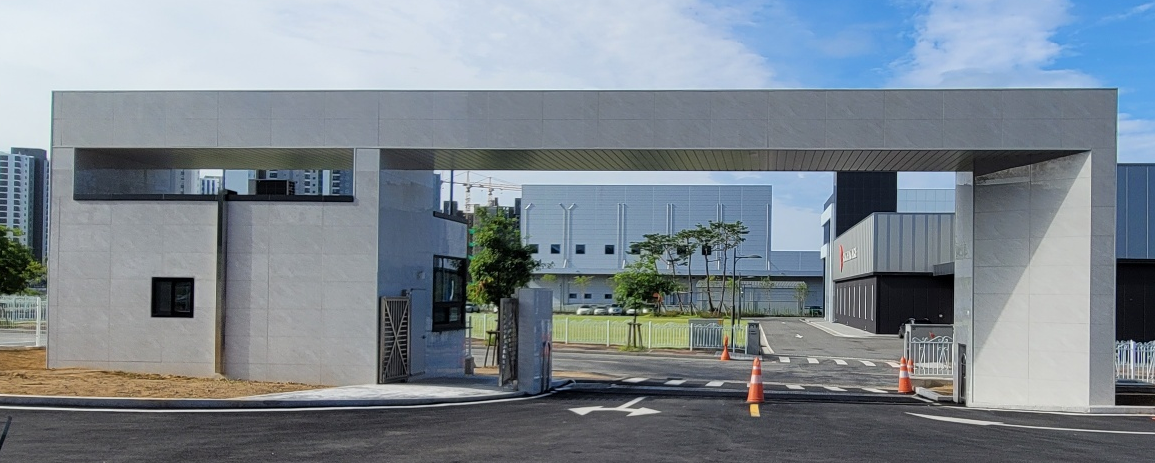

INDUSTRIAL PROJECT
Alpa Electronic Factory
Supertile exterior wall application

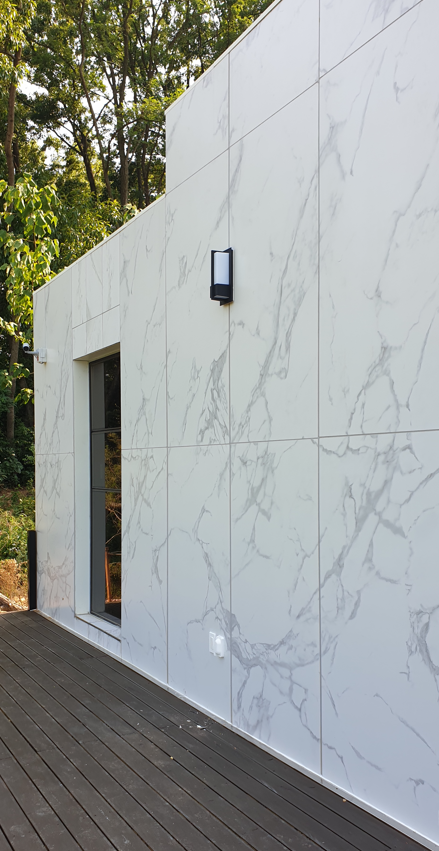

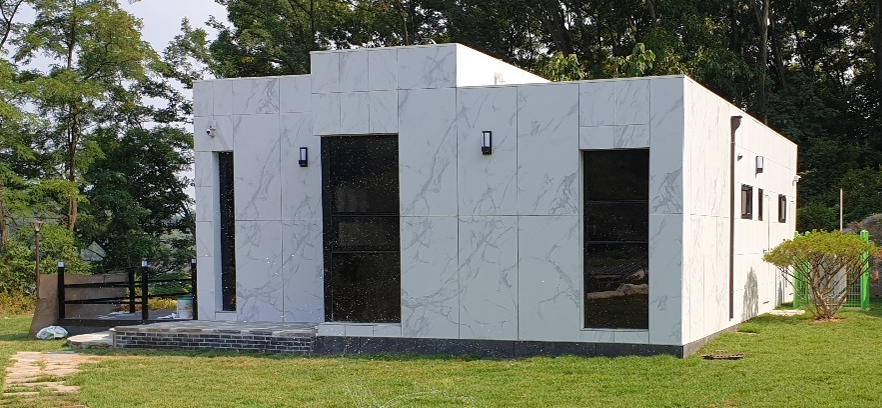

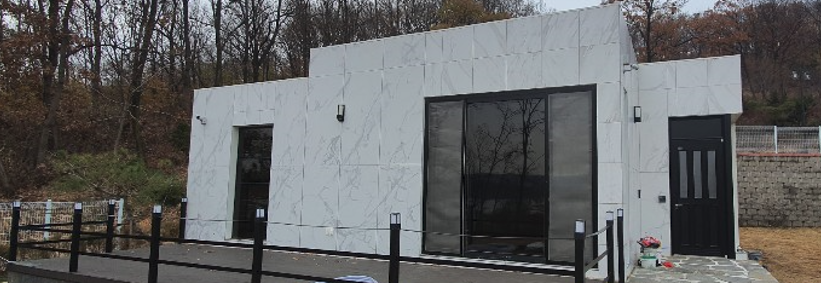

MODULAR HOUSING
Supertile for ADU
Fire-resistant exterior system
ENTERTAINMENT PROJECT

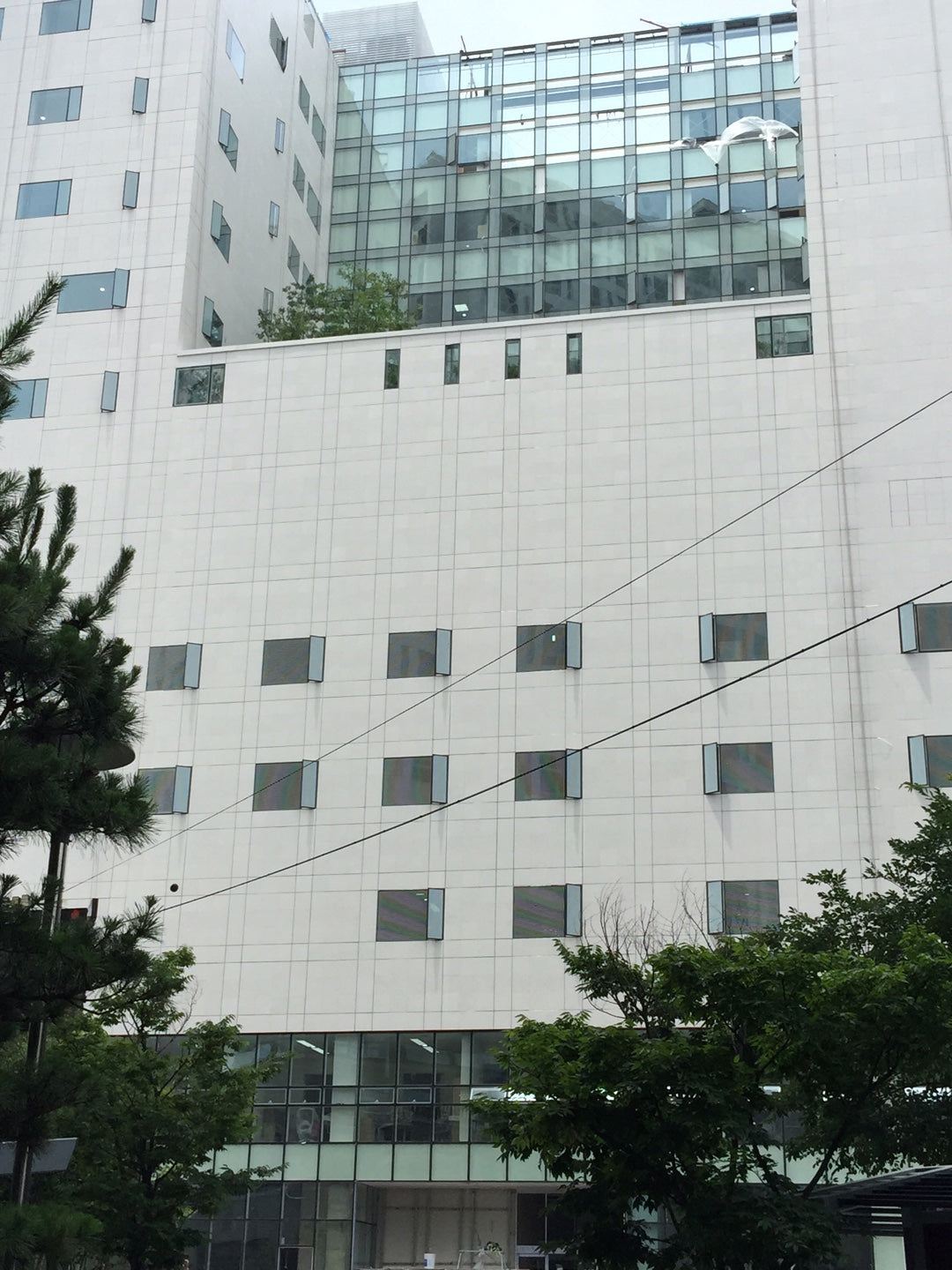

Lotte Cinema Theater
Supertile wall system
Lotte Cinema Theater
Lotte Cinema Theater
INTERIOR & EXTERIOR WALL SYSTEM
SUPER BOARD
SUPER M BOARD · SUPER G BOARD
Laminated magnesium and gypsum wallboard systems engineered for fire protection, moisture resistance, durability and fast installation.
2-Hour Fire Protection
Chloride Free
Moisture Resistant
Decorative Finishes
Fast Installation

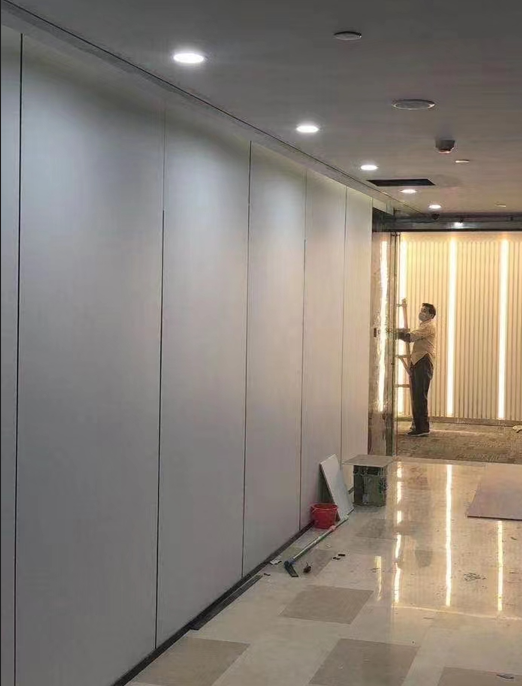

PRODUCT INTRODUCTION
SUPER BOARD
A finished wallboard system combining environmental responsibility, fire protection and premium decorative surfaces.
Laminated Magnesium or Gypsum Board
SUPER BOARD is an environmentally friendly laminated magnesium or gypsum board manufactured with modern chloride-free technology. The system is designed to provide at least two hours of fire protection without harmful materials.
After installation, the wall system is already finished with premium decorative surfaces such as wood grain, marble, stone, fabric and wall-covering textures for interior and exterior applications.
Fire Protection
Designed for at least two hours of fire resistance.
Moisture Resistance
Suitable for demanding interior and exterior wall applications.
Decorative Finish
Wood, marble, stone, fabric and wall-covering surface options.
Fast Installation
Finished board installation reduces traditional construction steps.
36
INTRODUCTION
SUPER M BOARD
Laminated magnesium sulfate board engineered for fire protection, moisture resistance, durability and chloride-free performance.
Super M Board uses high-purified active magnesium oxide as the main fireproof material and high-quality magnesium sulfate as the main cementing material.
Fiberglass mesh strengthens the board while lightweight filling materials support the core structure.
The chloride-free composition helps reduce corrosion, expansion and moisture-exudation problems.
CHLORIDE
FREE FIRE
PROTECTION MOISTURE
RESISTANCE DURABILITY
FREE FIRE
PROTECTION MOISTURE
RESISTANCE DURABILITY

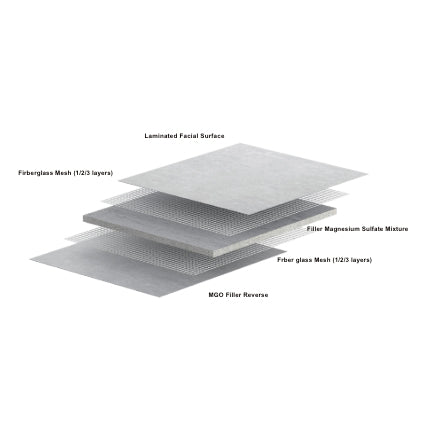

PRODUCT STRUCTURE IMAGE
Product Structure
DATA SHEET
| PROPERTY | TEST | RESULT | REQUIREMENT | VERDICT |
|---|---|---|---|---|
| Density | ASTM C1185 | 67.5 lbs/ft³ | Reported | N/A |
| Flexural Strength | ASTM C1185 | Dry 2685 psi Wet 1496 psi | ≥ 580 psi | PASS |
| Freeze / Thaw Cycling | ASTM C666 | No disintegration after 25 cycles | No disintegration | PASS |
| Dimensions & Tolerances | ASTM C1185 | Length 96.11 in. Width 48.06 in. Thickness 0.467 in. | Within specified tolerances | PASS |
| Moisture Movement | ASTM C1185 | 0.18% MD 0.17% CD | Reported | N/A |
| Water Absorption | ASTM C1185 | 26.2% by mass | Reported | N/A |
| Nail-Head Pull Through | ASTM D1037 | 437 lbf | ≥ 125 lbf | PASS |
| Falling Ball Impact | ASTM D1037 | No damage at 12-inch drop | No damage | PASS |
| Shear Bond Strength | ASTM A118.4 | 95–108 psi | ≥ 50 psi | PASS |
| Humidified Deflection | ASTM C473 | 0.008 in. | ≤ 0.0639 in. | PASS |
| Flame-Spread Characteristics | ASTM E84 | FSI 0 · SDI 0 | FSI ≤ 10 · SDI ≤ 5 | PASS |
37
SUPER M BOARD
Fireproof Performance
Tested fire, structural and chemical performance summarized from the source presentation.
120MINUTESFire Endurance
No passage of flames to the unexposed side.
Flame Spread Index 0 and Smoke Developed Index 0.
Non-combustible material performance.
Regulation No. 1907/2006 Article 33(1).
| TEST STANDARD | CLASSIFICATION / RESULT |
|---|---|
| ASTM D1037 | LE 0.10 · TE 0.17 |
| ASTM E119 | 120-minute fire endurance; maximum unexposed temperature 201°F. |
| EU REACH | Non-combustible |
| ASTM E136 | PASS |
| ASTM C871 | pH 10.216; sodium plus silicate ions 1,031.58 ppm; chloride plus fluoride ions 564.05 ppm. |
| ASTM E72 | PASS |
| ASTM E84 | FSI 0 · SD 0 |
| ASTM E228 | PASS |
38
SUPER M BOARD

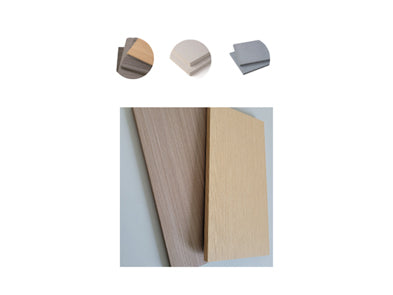

Product Specifications
Size, structure and surface treatment options.
39
SUPER G BOARD
LAMINATED GYPSUM BOARD
40
PRODUCT INTRODUCTION
Laminated Gypsum Board
Fire-resistant, moisture-resistant and visually finished wallboard system.
Modern buildings require fire prevention, sound absorption, environmental performance and mildew resistance.
Super Laminated Gypsum Board provides two-hour fire protection, moisture resistance and a finished wallboard surface.
A wide range of sizes, textures and surface materials supports residential, commercial and industrial wall applications.
Fast installation can reduce construction time and labor compared with conventional finishing methods.
41

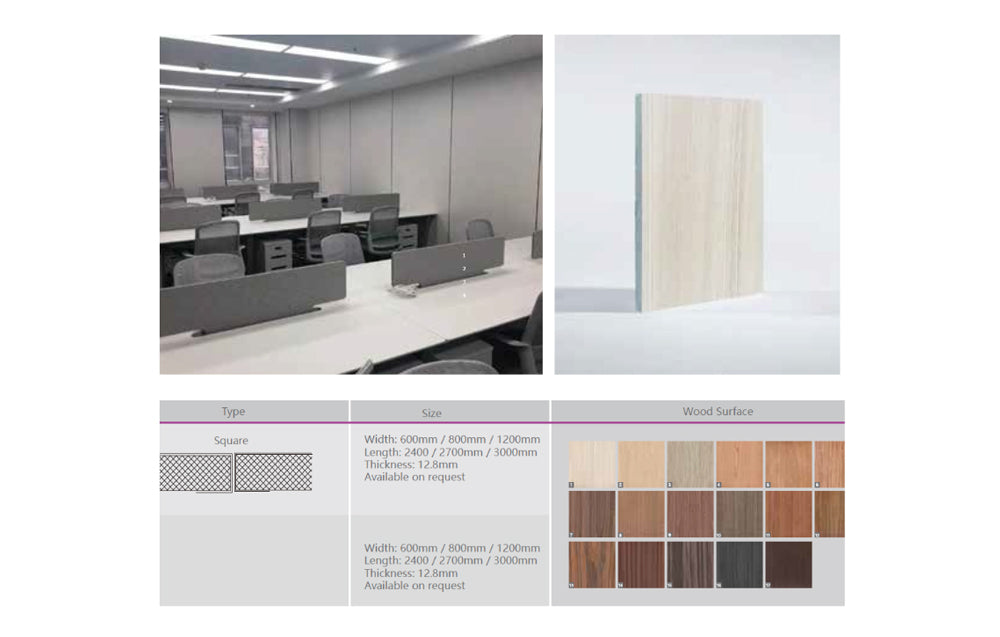

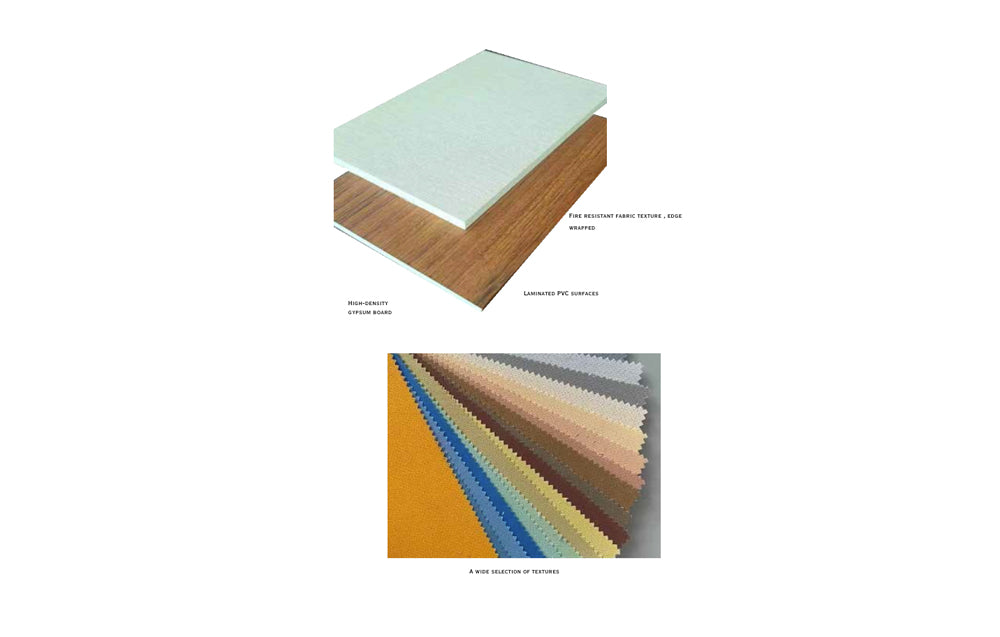

PVC LAMINATED SURFACE
SUPER BOARD®
High-density gypsum or magnesium board with PVC laminated finish.
Product description
Laminated to High density gypsum or mgo
board.
Wood Grain、 Stone Grain, Cloth Grain,
256 Patterns Choices Double edge wrapped, PUR glue lamination.
Features
High strength fiber mesh based gypsum or
mgo board.
substrate has the best bending strength
and deformation resistance.
Benefits
A variety of fabric colors and textures to give a soft feeling.
Extra long and wide size 600/1200 × 3000mm optional.
No painting, fast installation, saving 4/5 time of traditional man hours for installation.
Application
Wall & Ceiling to :
1.Residential - Houses, Apartment, Condos,
townhouse
2.Commercial - Offices, Hospital, Hotel,
School, theaters, concert
halls, museums, Convention
Center, airport,
3. Industrial
SUPER BOARD®
Laminated Board
PVC Laminated Surface
41
42

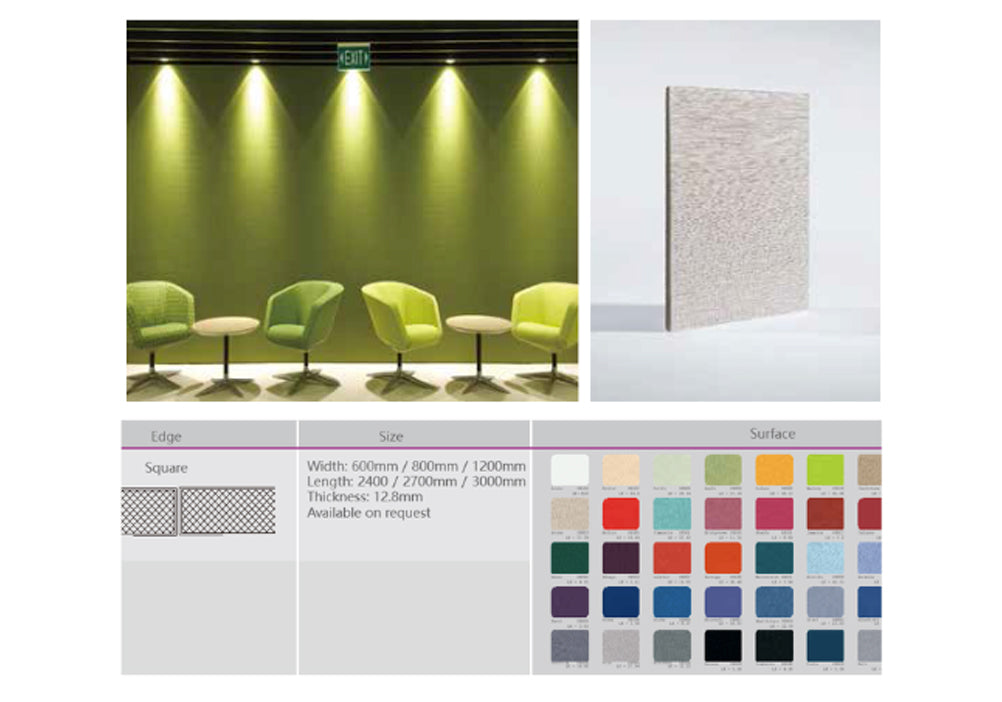

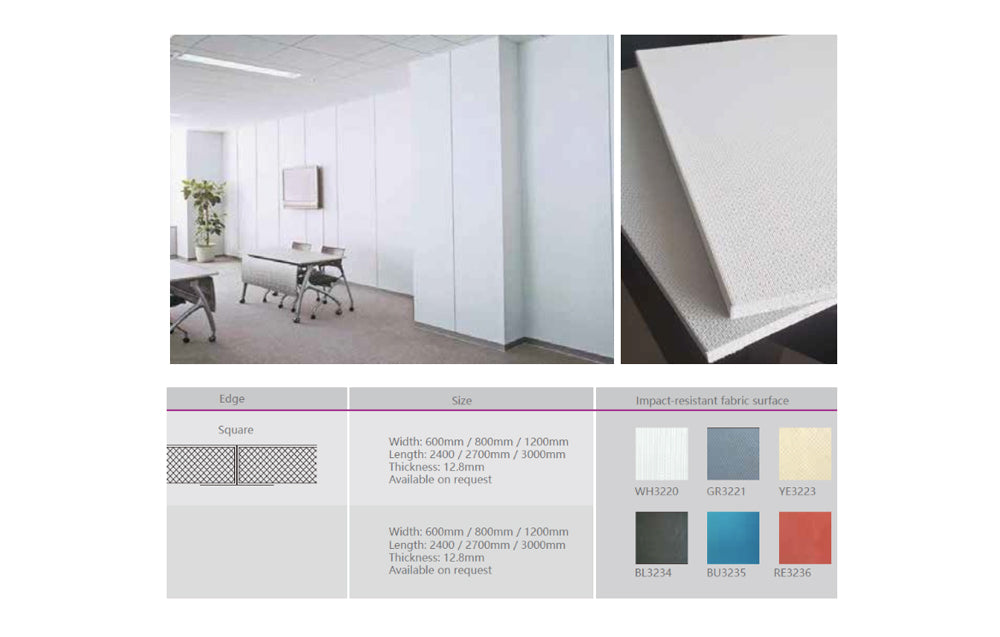

GLASS FIBER WOVEN FABRIC
SUPER BOARD®
Fabric-laminated wall and ceiling board for residential, commercial and industrial interiors.
Product description
Laminated to High density mog or gypsum
board. Impact Resistance.
180 Patterns Choices Double edge wrapped, PUR glue lamination.
Features
High strength fiber mesh based mog or
gypsum board.
substrate has the best bending strength
and deformation resistance.
Benefits
A variety of fabric colors and textures to give a soft feeling.
Extra long and wide size 600/1200 × 3000mm optional.
No painting, fast installation, saving 4/5 time of traditional man hours for installation.
Application
Wall & Ceiling to :
1.Residential - Houses, Apartment, Condos,
townhouse
2.Commercial - Offices, Hospital, Hotel,
School, theaters, concert
halls, museums, Convention
Center, airport,
3. Industrial
SUPER BOARD®
Laminated Board
Glass Fiber Woven Fabric Laminated Surface
42
43

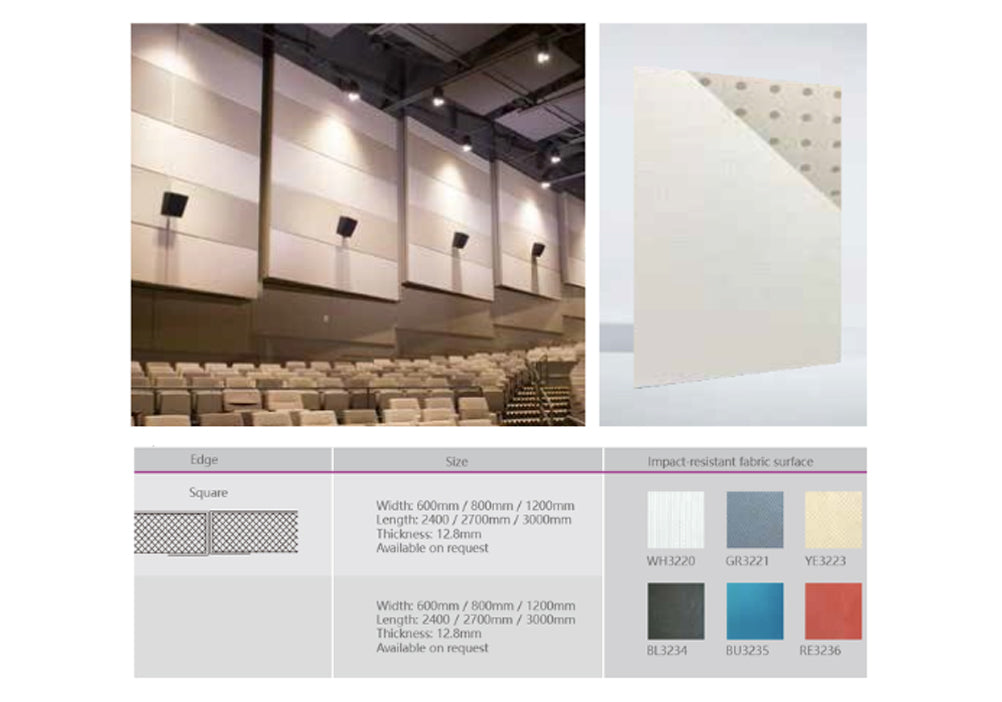

WALL COVERING SURFACE
SUPER BOARD®
Decorative wall-covering laminated surface with multiple pattern choices.
Product description
Laminated to High density gypsum or mog board.
Modern Fabric Wrap Lamination.
Customer Can Provide fabrics.
120 Patterns Choices Double edge wrapped, PUR glue lamination.
Features
High strength fiber mesh based gypsum or
mgo board.
substrate has the best bending strength
and deformation resistance.
Benefits
A variety of fabric colors and textures to give a soft feeling.
Extra long and wide size 600/1200 × 3000mm optional.
No painting, fast installation, saving 4/5 time of traditional man hours for installation.
Application
Wall & Ceiling to :
1.Residential - Houses, Apartment, Condos,
townhouse
2.Commercial - Offices, Hospital, Hotel,
School, theaters, concert
halls, museums, Convention
Center, airport,
3. Industrial
SUPER BOARD®
Laminated Board
Wall Covering Laminated Surface
43
44
IMPACT FIBERGLASS FABRIC
SUPER BOARD®
Acoustic and impact-resistant board with optional sound-absorbing perforations.
Product description
Laminated to High density gypsum or mgo board.
Impact Fiberglass Fabric Lamination.
Double sides Cladding.
Option for Sound Absorbing Holes.
Various Patterns Choices Double edge. wrapped, PUR glue lamination.
Features
High strength fiber mesh based gypsum or
mgo board.
substrate has the best bending strength
and deformation resistance.
Benefits
Super acoustic reflection protection. Extra long and wide size 600/1200 × 3000mm optional.
Acoustic Board absorbs a lot of sound reflection by perforated board Gypsum Board by Fabric Lamination.
Fast installation saves 4/5 time of traditional man hours for wall board installation.
Application
Wall & Ceiling to :
1.Commercial - theaters, concert halls,
museums, Convention Center
SUPER BOARD®
Laminated Board
Impact Fiberglass Fabric Laminated Surface
44
45

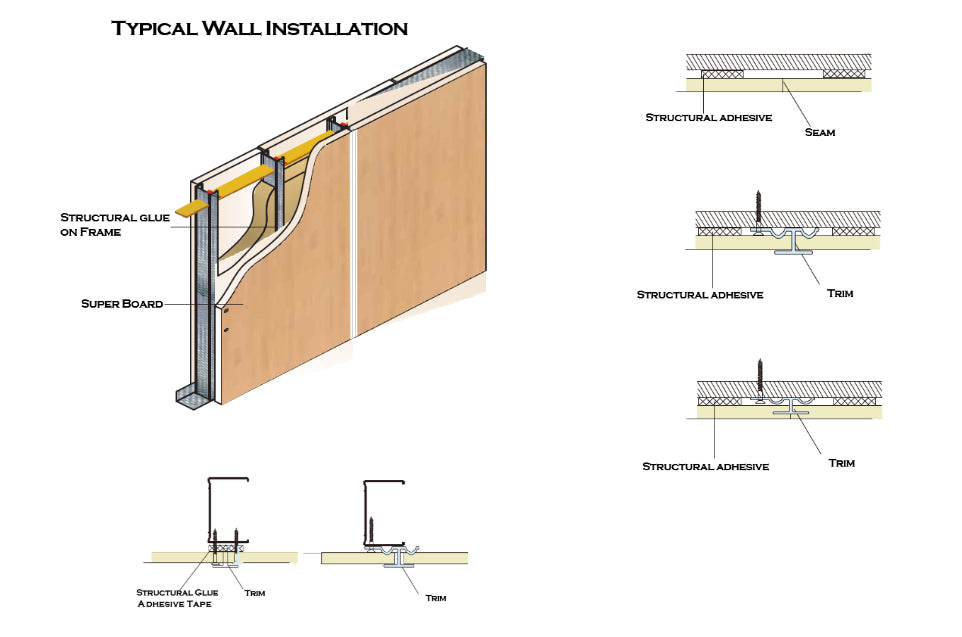

SUPER BOARD SYSTEM
Laminated Board Collection
Decorative, durable and fast-installation wallboard solutions.
46
MODULAR BATHROOM SYSTEM
Bathroom One-Stop Solution
Walls, cabinets, mirrors, wash basins, faucets, tubs, toilets, accessories and electrical items in one coordinated system.
47
MODULAR BATHROOM
Table of Contents
Complete bathroom product categories.
48
ABOUT US
Modern Bathcom
Modern bathroom remodeling and new bathroom construction for residential and commercial projects.
Our Services
New Bathroom Construction: Residential and commercial new-build bathroom solutions designed for durability, style and affordability.
Bathroom Remodeling: Contemporary remodeling for homes, offices, hotels and large-scale commercial facilities.
Products are manufactured under strict quality control and carefully packed for shipment.
49

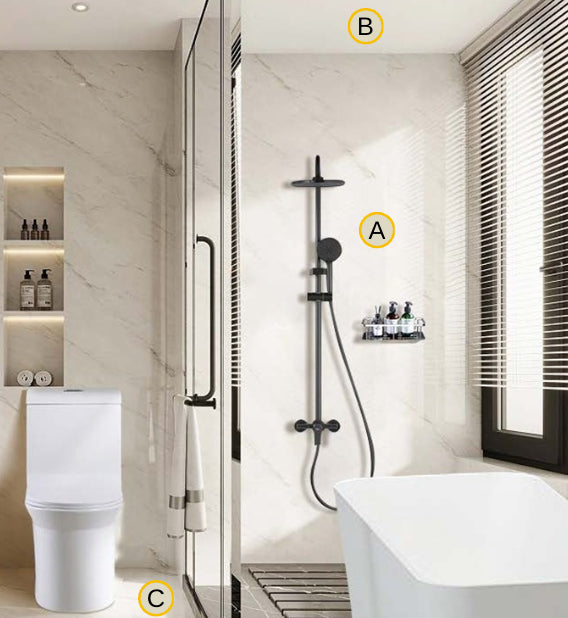

BATHCOM WALLS
Wall · Ceiling · Floor
Artificial marble, waterproof foam board and non-slip floor materials.
50
SHOWER UNIT
Alcove Wall System
Artificial marble walls, tempered-glass sliding door and non-slip shower floor pan.
51
CABINET
Bathroom Cabinet System
LED mirror cabinet, artificial washbasin and UV-panel base cabinet.
52
MIRRORS
Bathroom Mirror Collection
Multiple mirror styles for coordinated bathroom design.
53
WASH BASIN
Artificial Marble Wash Basins
Thin-top, thick-top and integrated top-view configurations.
54
FAUCETS
Bathroom Faucet Collection
Shower and wash-basin faucets in black and gun-gray finishes.
55
BATH TUB & TOILET
Bath Tub & Toilet Collection
Conventional tubs, free-standing tubs and smart or one-piece toilets.
56
ACCESSORIES
Bathroom Accessories
Paper holders, towel holders and coordinated finish options.
57
ELECTRICAL ITEMS
Bathroom Electrical System
Recessed lighting, ceiling fan and humidity-sensor fan control.
58
BATHROOM PROJECTS
Bathroom Collection
Completed bathroom concepts and coordinated product applications.
59
BATHROOM PROJECTS
Bathroom Collection
Completed bathroom concepts and coordinated product applications.
60
BATHROOM PROJECTS
Bathroom Collection
Completed bathroom concepts and coordinated product applications.
61
BATHROOM PROJECTS
Bathroom Collection
Completed bathroom concepts and coordinated product applications.
- Choosing a selection results in a full page refresh.
